This item is Discontinued.

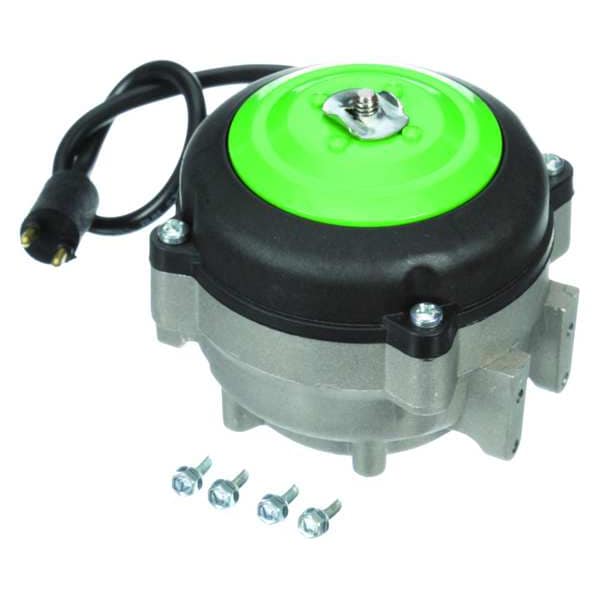

Morrill Unit Bearing Motor, 115V, 0.40A, 4 to 16W 5R031

Unit Bearing Motor, 115V, 0.40A, 4 to 16W (Discontinued)

  • Mfr # 5R031
  • Zoro # G5702261
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R031
Zoro #
G5702261
UPC #
815585023043
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
2 13/16 in
Shaft Length
5/16 in
Shaft Dia.
1/4 in
Body Dia.
3 15/16 in
Overall Length
3 9/16 in
Length Less Shaft
3 3/16 in
Lead Length
15 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
16 W
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Motor Frame Material
Aluminum
Motor Mounting Type
Rear/Foot
Standards
CSA Certified, UL Listed
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Service Factor
1
Max. Ambient Temp.
55 Degrees C
Motor Bearings
Ball
Includes
(4) #8-36 x 7/16" THD FM, Straight 2-Pin Connector
Motor Mounting Position
All Angle
Item
ECM Unit Bearing Motor
Plug Type
Round 2 Pin
Ins. Class
B
Motor Design
ECM
Frame Material
Aluminum
Motor Enclosure Design
Totally Enclosed Air-Over
Hz
60 Hz
Motor Shaft Design
Threaded
Full Load Amps
0.4 A
Features
5 Cored Holes Opposite Shaft End, Tapped Double Boss
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Usable @ 208V
No
Capacitor Required
No
Usable @ 200V
No
Weight
2 lb
Duty Cycle
Continuous
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
No. of Speeds
1
Mounting Holes
(5) OPE, (4) Top & Bottom
Application
Commercial Refrigeration

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.4 A Full Load Amps, Non-Standard Frame, Output Watts 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Aluminum
