  11. Unit Bearing Motor, 115V, 0.60A, 9 to 25W
This item is Discontinued.

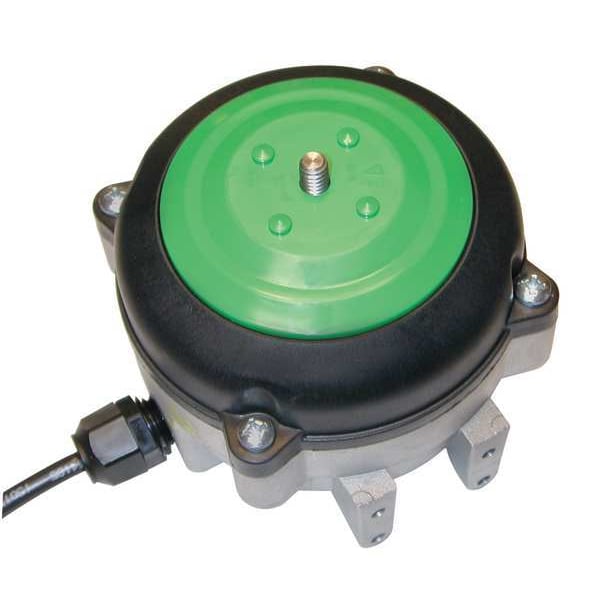

Morrill Unit Bearing Motor, 115V, 0.60A, 9 to 25W 5R999

Unit Bearing Motor, 115V, 0.60A, 9 to 25W (Discontinued)

  • Mfr # 5R999
  • Zoro # G5731336
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R999
Zoro #
G5731336
UPC #
815585025382
Country of Origin
Mexico

Dimensions

Body Dia.
3 15/16 in
Shaft Length
5/16 in
Length Less Shaft
3 3/16 in
Shaft Dia.
1/4 in
Overall Length
3 9/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
25 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
25 to 9 W
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Plug Type
Round 2 Pin
Ins. Class
B
Motor Design
ECM
Motor Service Factor
1
Full Load Amps
0.14-0.60 A
Standards
CSA Certified, UL Listed
Motor Application
HVAC/R
Motor Mounting Type
Rear/Foot
Motor Enclosure Design
Totally Enclosed Air-Over
Max. Ambient Temp.
55 Degrees C
Frame Material
Aluminum
Motor Frame Material
Aluminum
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Design
Threaded
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Includes
(4) #8-36 x 7/16" THD FM, Straight 2-Pin Connector
Item
ECM Unit Bearing Motor
Usable @ 208V
No
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
Capacitor Required
No
No. of Speeds
1
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Duty Cycle
Continuous
Weight
2 lb
Usable @ 200V
No
Features
5 Cored Holes Opposite Shaft End, Tapped Double Boss
Mounting Holes
(5) OPE, (4) Top & Bottom
Application
Commercial Refrigeration

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.14-0.60 A Full Load Amps, Non-Standard Frame, Output Watts 25 to 9 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Aluminum
