This item is Discontinued.

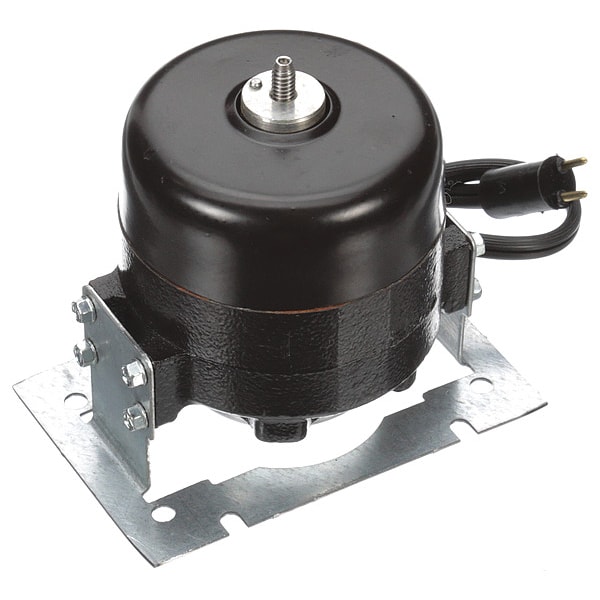

Morrill Unit Bearing Motor, 1/4 In. L, CCWLE, ECM 5R022

Unit Bearing Motor, 1/4 In. L, CCWLE, ECM (Discontinued)

  • Mfr # 5R022
  • Zoro # G2965995
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R022
Zoro #
G2965995
UPC #
663001306863
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 1/4 in
Shaft Dia.
1/4 in
Body Dia.
3 7/16 in
Overall Length
4 9/16 in
Shaft Length
5/16 in
Lead Length
15 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
38 W
HP
1/20
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CCWSE
Nameplate RPM
1,550
Frame
Non-Standard
Frame Material
Aluminum
Mounting Pattern
(4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Motor Mounting Type
Rear/Foot
Motor Application
HVAC/R
Full Load Amps
0.9 A
Hz
60 Hz
Item
ECM Unit Bearing Motor
Application
Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Ins. Class
B
Motor Design
ECM
Max. Ambient Temp.
55 Degrees C
Motor Enclosure Design
Totally Enclosed Air-Over
Ambient Temperature
-40 to 55 Degrees C
Motor Bearings
Unit
Duty
Continuous
Plug Type
2 Prong Lyall M-2-24
Standards
CSA, UL
Motor Shaft Design
Threaded
Motor Service Factor
1
Motor Frame Material
Cast Iron
No. of Speeds
1
Motor Mounting Position
All Angle
Motor Thermal Protection
Electronic
Includes
Mounting Bracket
Usable @ 200V
No
Mounting Stud Pattern
2 in x 4 in
Usable @ 208V
No
Weight
4 lb
Duty Cycle
Continuous
Features
Electronically Commutated (ECM), Electronically Protected

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.9 A Full Load Amps, Non-Standard Frame, Output Watts 38 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
