This item is Discontinued.

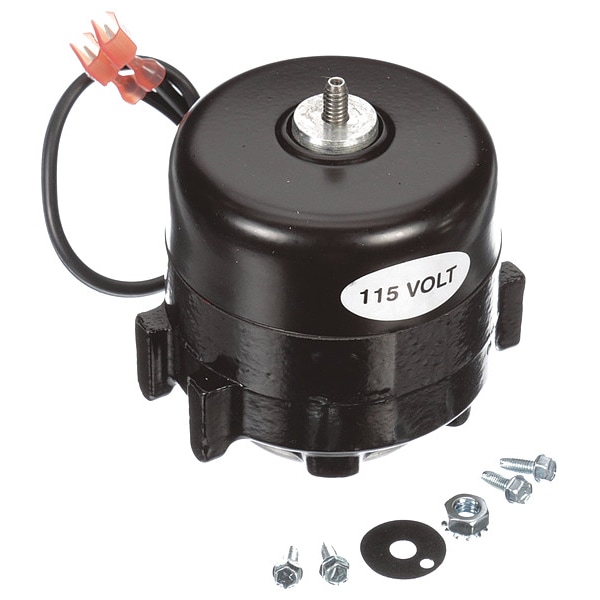

Morrill Unit Bearing Motor, 1/4 In. L, ECM, CCWLE 5R017

Unit Bearing Motor, 1/4 In. L, ECM, CCWLE (Discontinued)

  • Mfr # 5R017
  • Zoro # G1367064
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R017
Zoro #
G1367064
UPC #
815585024774
Country of Origin
Mexico

Dimensions

Shaft Length
5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
3 13/16 in
Overall Length
4 1/8 in
Body Dia.
3 7/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
13 in
Stud Size
#8-36

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
38 W
HP
1/20
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CCWSE
Nameplate RPM
1,550
Frame
Non-Standard
Motor Thermal Protection
Electronic
Mounting Pattern
(3) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Motor Mounting Type
Rear/Foot
Plug Type
2 Prong Lyall M-2-24
Max. Ambient Temp.
55 Degrees C
Motor Service Factor
1
Full Load Amps
0.9 A
Frame Material
Aluminum
Motor Shaft Design
Threaded
Motor Application
HVAC/R
Item
ECM Unit Bearing Motor
Application
Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Motor Frame Material
Cast Iron
Motor Design
ECM
Ambient Temperature
-40 to 55 Degrees C
Motor Bearings
Unit
Ins. Class
B
Motor Enclosure Design
Totally Enclosed Air-Over
No. of Speeds
1
Motor Mounting Position
All Angle
Standards
CSA, UL
Hz
60 Hz
Duty
Continuous
Features
3 Cored Holes Opposite Shaft End, Electronically Commutated (ECM), Electronically Protected
Mounting Stud Pattern
2 13/16 in
Weight
2 lb
Stud Quantity
3
Duty Cycle
Continuous
Usable @ 200V
No
Usable @ 208V
No

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.9 A Full Load Amps, Non-Standard Frame, Output Watts 38 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
