This item is Discontinued.

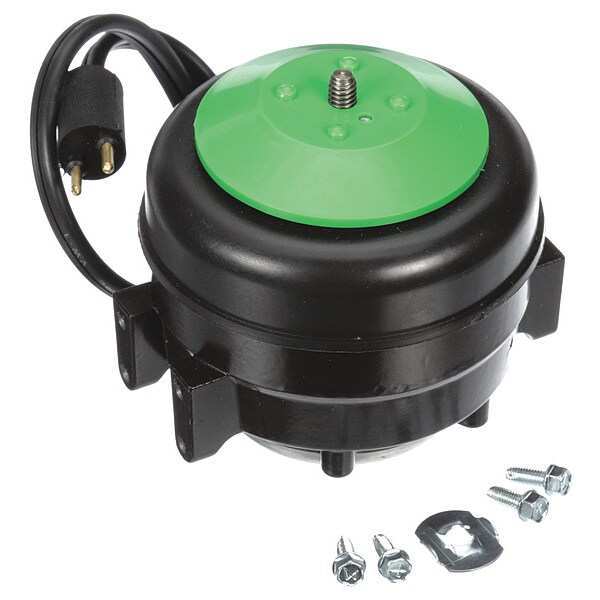

Morrill Unit Bearing Motor, 1/4 In. L, ECM, CWLE 5R020

Unit Bearing Motor, 1/4 In. L, ECM, CWLE (Discontinued)

  • Mfr # 5R020
  • Zoro # G2990005
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R020
Zoro #
G2990005
UPC #
663001305781
Country of Origin
Mexico

Dimensions

Overall Length
3 7/8 in
Length Less Shaft
3 5/8 in
Shaft Length
1/4 in
Body Dia.
3 7/16 in
Shaft Dia.
1/4 in
Lead Length
15 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Ambient Temperature
-40 to 55 Degrees C
Duty
Continuous
Ins. Class
B
Motor Shaft Design
Threaded
Mounting Pattern
(4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Full Load Amps
0.4 A
Motor Application
HVAC/R
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Application
Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Item
ECM Unit Bearing Motor
Max. Ambient Temp.
55 Degrees C
Plug Type
2 Prong Lyall M-2-24
Motor Bearings
Unit
No. of Speeds
1
Motor Thermal Protection
Electronic
Motor Frame Material
Aluminum
Motor Mounting Type
Rear/Foot
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Service Factor
1
Frame Material
Aluminum
Motor Mounting Position
All Angle
Motor Design
ECM
Usable @ 200V
No
Weight
2 lb
Mounting Stud Pattern
(5) 1/8 in dia Cored Holes on 2 13/16 in dia Bolt Circle on Rear, (4) 1/8 in dia Drilled Holes 5/8 in x 1 1/8 in on Each Foot
Features
5 Cored Holes Opposite Shaft End, Electronically Commutated (ECM), Tapped Double Boss
Duty Cycle
Continuous
Usable @ 208V
No

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.4 A Full Load Amps, Non-Standard Frame, Output Watts 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Aluminum
