This item is Discontinued.

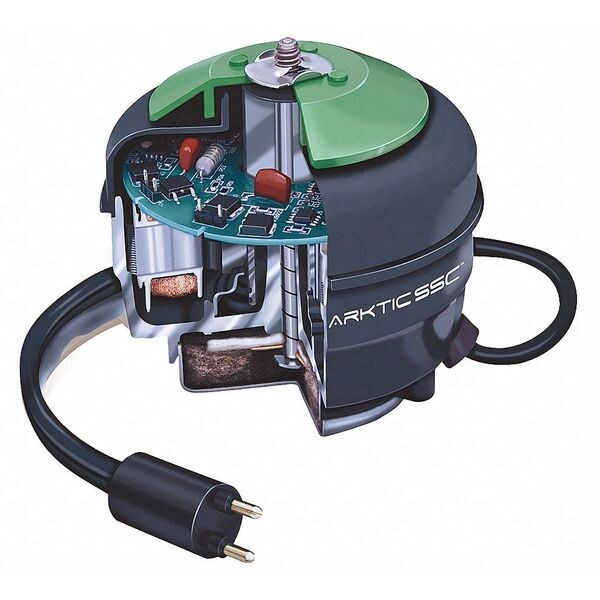

Morrill Unit Bearing Motor, ECM, 1/4 In. L, CWLE 5R016

Unit Bearing Motor, ECM, 1/4 In. L, CWLE (Discontinued)

  • Mfr # 5R016
  • Zoro # G2243202
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R016
Zoro #
G2243202
UPC #
815585024767
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Overall Length
3 1/2 in
Shaft Length
1/4 in
Shaft Dia.
1/4 in
Length Less Shaft
3 1/4 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
12 W
HP
1/60
RPM Range
1,501-1,600
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,l550
Frame
Non-Standard
Motor Mounting Position
All Angle
Plug Type
2-prong Lyall M-2-24
Item
ECM Unit Bearing Motor
Frame Material
Aluminum
Max. Ambient Temp.
55 Degrees C
Motor Design
ECM
Motor Shaft Design
Threaded
Application
Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Mounting Pattern
(4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Motor Mounting Type
Rear/Foot
Ins. Class
B
No. of Speeds
1
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
UL Recognized (E258064)
Hz
60 Hz
Motor Application
HVAC/R
Motor Bearings
Unit
Motor Thermal Protection
Auto
Motor Service Factor
1
Duty
Continuous
Ambient Temperature
-40 to 55 Degrees C
Full Load Amps
0.30 A
Motor Frame Material
Cast Aluminum

Description

ECM Unit Bearing Motor, ECM, Motor Enclosure Design Totally Enclosed Air-Over, 1/60 HP, Output Watts 12 W, 1,l550 Nameplate RPM, Non-Standard Frame, Voltage 115V AC, Hz 60 Hz, Single Phase, Full Load Amps 0.30 A, Motor Mounting Type Rear/Foot, Auto Motor Thermal Protection, Ins. Class B, No. of Speeds 1, Motor Shaft Rotation CWLE, Unit Motor Bearings, Motor Service Factor 1, Ambient Temperature -40 to 55 Degrees C, Max. Ambient Temp. 55 Degrees C, Motor Frame Material Cast Aluminum
