This item is Discontinued.

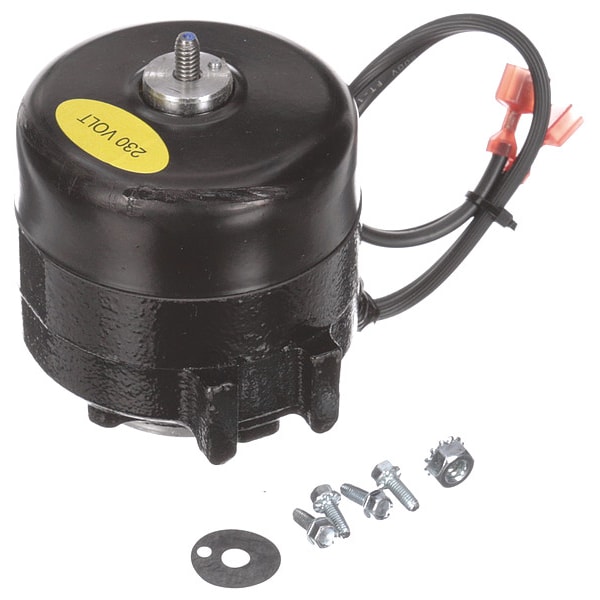

Morrill Unit Bearing Motor, ECM, CCWSE, 1/4 In. L 5R018

Unit Bearing Motor, ECM, CCWSE, 1/4 In. L (Discontinued)

  • Mfr # 5R018
  • Zoro # G2091162
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R018
Zoro #
G2091162
UPC #
815585024781
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Body Dia.
3 7/16 in
Overall Length
4 1/8 in
Length Less Shaft
3 13/16 in
Shaft Length
5/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
13 in
Stud Size
#8-36

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
38 W
HP
1/20
RPM Range
1,501-1,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase
Single
Voltage
230V AC
Motor Shaft Rotation
CCWSE
Nameplate RPM
1,550
Frame
Non-Standard
Mounting Pattern
(4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Motor Application
HVAC/R
Full Load Amps
0.45 A
Duty
Continuous
Motor Design
ECM
Application
Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Motor Mounting Position
All Angle
Item
ECM Unit Bearing Motor
Motor Mounting Type
Rear/Foot
Ins. Class
B
Hz
60 Hz
Plug Type
1/4 in Male Quick Disconnect Connector
Motor Bearings
Unit
No. of Speeds
1
Motor Service Factor
1
Ambient Temperature
-40 to 55 Degrees C
Frame Material
Aluminum
Motor Shaft Design
Threaded
Standards
CSA, UL
Max. Ambient Temp.
55 Degrees C
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Thermal Protection
Electronic
Motor Frame Material
Cast Iron
Stud Quantity
3 (E Mounting), 4 (L, S Mounting)
Usable @ 208V
No
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E Mounting)
Duty Cycle
Continuous
Features
3 Cored Holes Opposite Shaft End, Electronically Commutated (ECM), Electronically Protected
Weight
4 lb
Usable @ 200V
No

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, 0.45 A Full Load Amps, Non-Standard Frame, Output Watts 38 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
