This item is Discontinued.

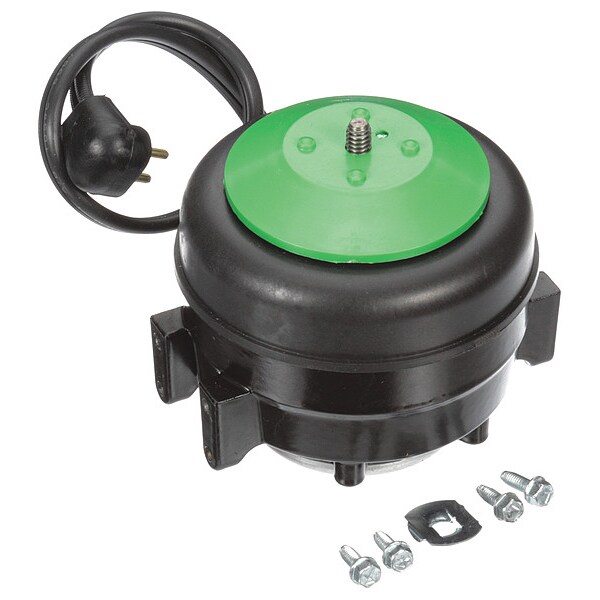

Morrill Unit Bearing Motor, Nonstandard, Up 5R025

Unit Bearing Motor, Nonstandard, Up (Discontinued)

  • Mfr # 5R025
  • Zoro # G2785316
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R025
Zoro #
G2785316
UPC #
663001305255
Country of Origin
Mexico

Dimensions

Shaft Length
5/16 in
Length Less Shaft
3 1/2 in
Overall Length
3 7/8 in
Shaft Dia.
1/4 in
Body Dia.
3 7/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
15 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
12 W
HP
1/60
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWSE
Nameplate RPM
1,550
Frame
Non-Standard
Max. Ambient Temp.
55 Degrees C
Motor Thermal Protection
Electronic
Duty
Continuous
Motor Enclosure Design
Totally Enclosed Air-Over
Ins. Class
B
Motor Bearings
Unit
Application
Beverage Merchandisers, Condenser Fans, Ice Machines, Vending Machines and Display Cases, Walk-in Coolers and Freezers
Motor Mounting Type
Rear/Foot
Motor Shaft Design
Threaded
Plug Type
2 Prong Lyall M-2-24
Motor Design
ECM
Standards
CSA, UL
Motor Application
HVAC/R
Motor Frame Material
Aluminum
Motor Service Factor
1
Item
ECM Unit Bearing Motor
Motor Mounting Position
Vertical
Full Load Amps
0.3 A
Hz
60 Hz
Mounting Pattern
(5) 0.15 In Dia Cored Holes
Ambient Temperature
-40 to 55 Degrees C
No. of Speeds
1
Frame Material
Aluminum
Weight
2 lb
Usable @ 200V
No
Features
5 Cored Holes Opposite Shaft End, Electronically Commutated (ECM), Electronically Protected, Tapped Double Boss
Duty Cycle
Continuous
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Usable @ 208V
No
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/60 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.3 A Full Load Amps, Non-Standard Frame, Output Watts 12 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Aluminum
