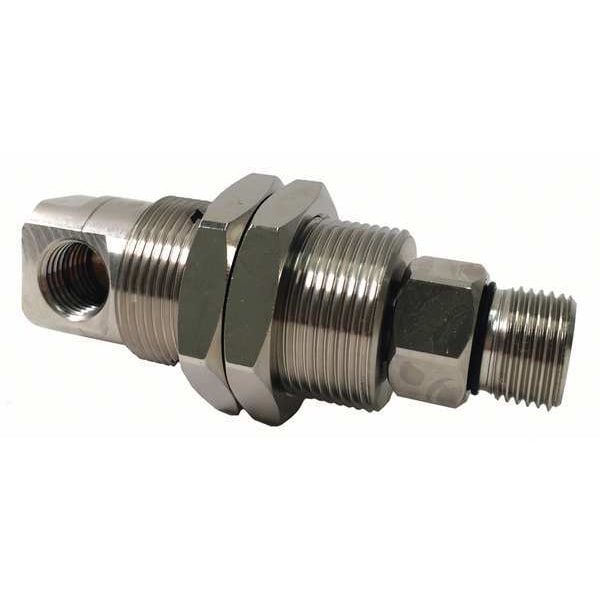

Rotary Union, 90 Degrees, DXG Swivel
Mfr # 37.363
Zoro # G1873700
product price: $368.99
/ea
Free Shipping & Returns
Key Features
Size
1/4 in (F)NPTF x 3/8 in (M)NPTM
Rotation
Self Rotating
Flow
Single
Max. Speed
2000 rpm
Body Dia.
1.34"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
37.363
Zoro #
G1873700
UPC #
-
Country of Origin
Switzerland
Dimensions
Size
1/4 in (F)NPTF x 3/8 in (M)NPTM
Body Dia.
1.34"
Pipe Size (Fittings)
1/4" x 3/8"
Pipe Size - Pipe Fitting
1/4" x 3/8"
Body Diameter
1.34 in
Shaft Thread Length
7/16 in
Stationary Port Thread Size
1/4 in
Rotating Shaft Thread Size
3/8 in
Description
Rotary Union, Fitting Material Brass, Internal Fitting Material Stainless Steel, Fitting Material Finish Nickel-Plated, Internal Fitting Material Grade 304, Fitting Type Straight, Flow Direction Single-Flow, Maximum Operating Temperature 250 Degrees F, Maximum Speed 2000 RPM, Minimum Operating Temperature 40 Degrees F, Number of Passages 1, Pipe Size Not Applicable, Rotating Shaft Connection Type G M, Rotating Shaft Thread Size 3/8 in, Seal Material Ceramic, Shaft Thread Length 7/16 in
