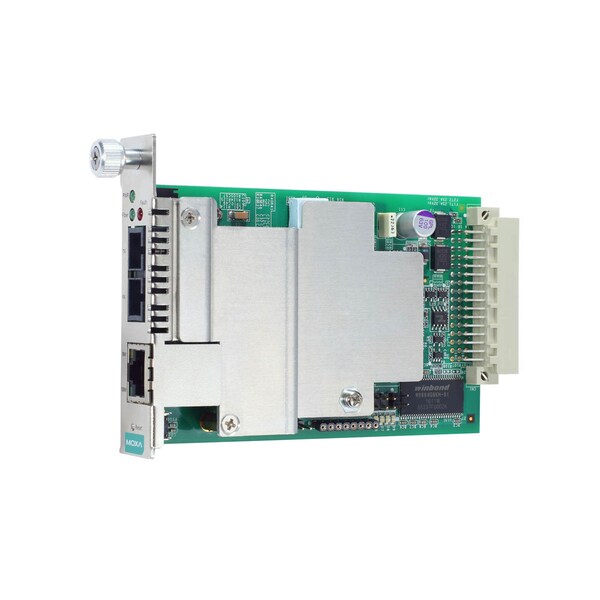

10/100Baset(X) To 100Basefx Slide-In Mgd Module Converter, Csm-400-1218
Mfr # CSM-400-1218
Zoro # G4403064
product price:
$
499.99
/ea
Free Shipping & Returns
Key Features
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X), 100BaseFX
EMI
CISPR 32, FCC Part 15B Class A
Dimensions
86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
EMC
EN 55032/24
Time
1,454,560 hrs
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CSM-400-1218
- Zoro #
- G4403064
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Dimensions
- 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Details
- Standards
- IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X), 100BaseFX
- EMI
- CISPR 32, FCC Part 15B Class A
- EMC
- EN 55032/24
- Time
- 1,454,560 hrs
- Fiber Ports
- 100BaseFX (SC/ST connectors)
- EMS
- EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV; EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m; EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV; EN 61000-4-5 (Surge): Power: 1 kV; Signal: 0.5 kV; EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m; EN 61000-4-8 (PFMF); EN
- Input Current
- 220 mA @ 12 VDC max.
- Input Voltage
- 12 VDC
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Standard
- Telcordia (Bellcore), GB
- RJ45 Ports
- 10/100BaseT(X)
- Freefall
- IEC 60068-2-32
- Storage temperature
- -40 to 85°C (-40 to 185°F)
- Safety
- UL 60950-1
- Multi-Mode
- Single-Mode
- LED Indicators
- PWR, Fiber Link, 10/100M (TP port)
- Operating temperature
- Standard Models: -20 to 55°C (-4 to 131°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Description
10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -20 to 55°C
