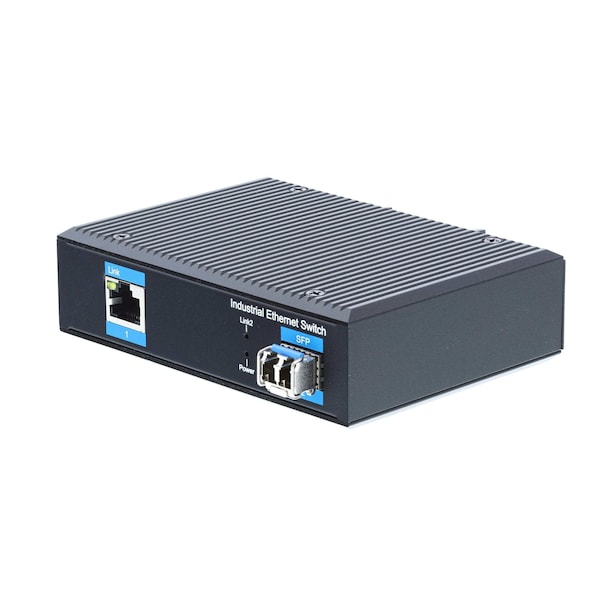

Industrial Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, 1 Port

The Industrial Media Converter is a high-performance device designed to convert data signals between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. Compliant with IEEE 802.3z and IEEE 802.3AB standards, this converter supports both 10/100/1000Base-T and 1000Base-LX applications, enabling data transmission up to 80km via fiber-optic cable.Equipped with single fiber optic connectors TX and RX, an RJ-45 jack, and an external power supply receptacle, this compact converter features three LED indicators for easy monitoring of power, UTP Link/Activity, Fiber Link/Activity, Full duplex, and data rates. It automatically configures for Full or Half Duplex operation.The converter is cost-effective, low dissipative, and highly reliable. It can be used in standalone applications or DIN-Rail mounted configurations, allowing multiple converters to be attached to a single rail.Key Features:- Data Rate: 10/100/1000M with Auto-Negotiation- Mode: UTP Half or Full Duplex- Optical wavelength: 1310 nm- Fiber Type: Single Mode 9/125 micron- Connectors: One UTP, Two LC Fiber- Max Distance: 20 km- Power Supply: Input 100-240Vac 1A, Output DC 24V 1A- Optical Output Power: -10 to -6 dBm- Optical Receiver Sensitivity: -23 dBm- Saturability: greater than or equal to -3 dBmIndustry Standards Compliance:- EMI: FCC/CE/LVD/EMC- EMS: IEC61000-4-2 ESD: +/-8kV contact, +/-15kV air IEC61000-4-3 RS: 10V/m 80MHz-2GHz IEC61000-4-4 EFT: Power Port: +/-4kV; Data Port: +/-2kV IEC61000-4-5 Surge: Power Port: +/-2kV/DM, +/-4kV/CM; Data Port: +/-2kV IEC61000-4-6 CS: 3V 10kHz-150kHz; 10V150kHz-80MHz IEC61000-4-16 Common mode conduction: 30V cont., 300V 1s- Shock: IEC 60068-2-27- Free Fall: IEC 60068-2-32- Vibration: IEC 60068-2-6Note: Mode Conditioning cable is recommended if running over legacy Multimode Backbone.This Industrial Media Converter offers a robust solution for converting and transmitting data signals in various industrial environments, ensuring reliable and efficient network communication.

• •Extended Range: Supports data transmission up to 20 kilometers over singlemode fiber for long-distance applications.
• •Gigabit Ethernet: Converts 1000Base-T to 1000Base-LX, ensuring high-speed and reliable fiber connectivity.
• •1310nm Wavelength: Optimized for long-distance transmission at 1310nm wavelength.
• •Rugged Design: Industrial-grade construction for reliable performance in harsh environments.
• •Single-Port Simplicity: Compact and efficient, with one LC fiber port and one RJ45 port for easy network integration.
