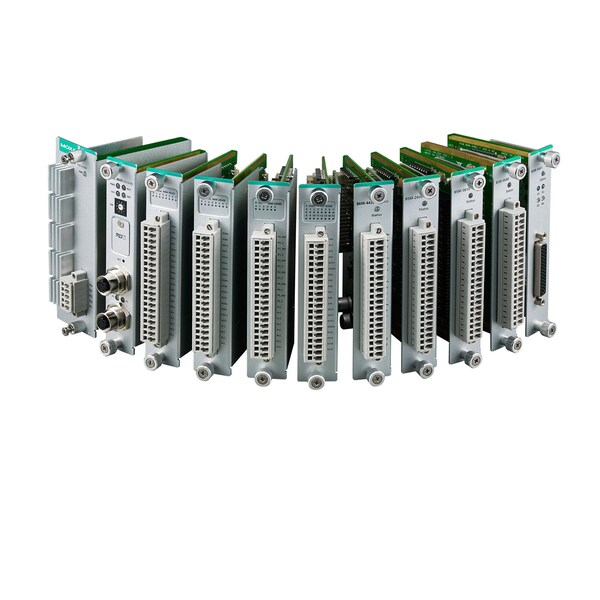

16 Dis, Sink/Source, 24-110 Vdc, Channel Led, -40 To 75 Degrees C (Discontinued)
- Mfr # 86M-1620D-T
- Zoro # G4575727
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
86M-1620D-T
Zoro #
G4575727
UPC #
-
Country of Origin
Taiwan, Province of China
Details
Connector
Spring-type terminal block
Type
PNP
Debouncing Time
1 to 15 ms (software-selectable)
Isolation
To system: 3k VDC or 2k Vrms
Logic Definition
On: channel voltage > 0.3 x (external power voltage); Off: channel voltage < 0.15 x (external power voltage)
Scan on Time
0.5 ms
Operating temperature
-40 to 75°C (-40 to 176°F)
Common Type
8 points per COM
Channel LED
Yes
Digital Inputs
16 channels
Wiring
I/O cable, 16 AWG (max.)
Time
1,115,244 hrs
Debouncing Function
Software disable/enable
Input Current
12.6 mA @ 24 VDC
Scan Period
8 ms (typ.)
Standard
Telcordia SR332
I/O Mode
DI
Description
16 DIs, sink/source, 24-110 VDC, channel LED, -40 to 75°C
