  9. 8Ports Rs-232/422/485 Terminal Server W/ Db9 Connector, Dual

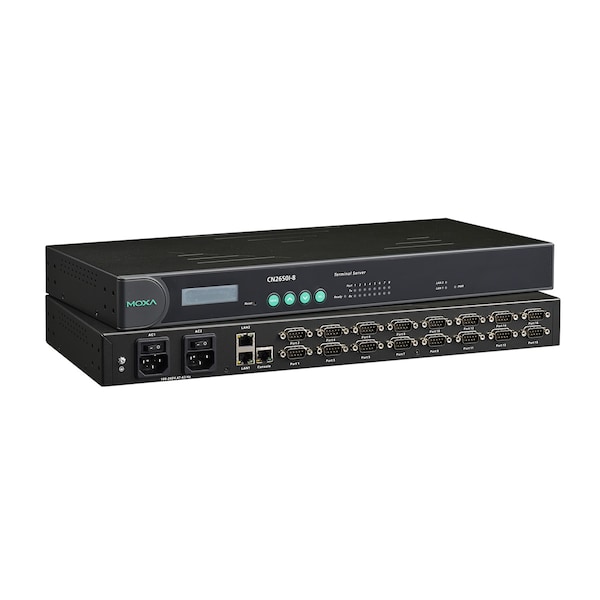

Moxa 8Ports Rs-232/422/485 Terminal Server W/ Db9 Connector, Dual CN2650I-8-2AC - main

8Ports Rs-232/422/485 Terminal Server W/ Db9 Connector, Dual

  • Mfr # CN2650I-8-2AC

  • Zoro # G4574467

product price: $3,248.99
/ea
Free Shipping & Returns

Key Features

Automatic Reboot Trigger
Built-in WDT (watchdog timer)
Speed
10/100 Mbps, auto MDI/MDIX
Storage temperature
Standard Models: -40 to 75°C (-40 to 167°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F); High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Serial Line Protection
2 kV optical isolation (CN2650I)
Terminator for RS-485
120 Ω
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CN2650I-8-2AC
Zoro #
G4574467
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
Without ears: 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in); With ears: 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)

Details

Automatic Reboot Trigger
Built-in WDT (watchdog timer)
Speed
10/100 Mbps, auto MDI/MDIX
Storage temperature
Standard Models: -40 to 75°C (-40 to 167°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F); High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Serial Line Protection
2 kV optical isolation (CN2650I)
Terminator for RS-485
120 Ω
Housing
Metal
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Vibration
IEC-68-2-6
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
EMS
EN 61000-4-2 ESD: contact 4 kV; air 8 kV; EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz); EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV; EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (HV models); Signal 1 kV; EN 61000-4-6 CS: 3 V; EN 61000-4-8; EN 61000-4-11: AC m
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Alert Tools
Built-in buzzer and RTC (real-time clock)
Input Voltage
AC Models: 100 to 240 VAC, 47 to 63 Hz; DC Models: 110 VDC (88 to 300 VDC)
Operating temperature
Standard Models: 0 to 55°C (32 to 131°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F); High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Number of Ports
8 or 16, 2 (2 IPs)
Security Protocols
RADIUS, HTTPS, SSH, PAP, CHAP
Serial Standards
CN2610: RS-232; CN2650/2650I: RS-232/422/485
Parity
None, Even, Odd, Space, Mark
Freefall
IEC-68-2-34, IEC-68-2-32
Safety
UL 60950-1, EN 60950-1
Data Bits
5, 6, 7, 8
Terminal Sessions
8 sessions per port
Management
SNMP MIB-II
Configuration Options
Web Console, Serial Console, Telnet Console, Windows Search Utility
Ambient Relative Humidity
5 to 95% (non-condensing)
RS-485-2w
Data+, Data-, GND
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Power Consumption
CN2650 AC models: 235 mA @ 100 VAC, 145 mA @ 240 VAC; CN2650I HV models: 152 mA @ 88 VDC, 86 mA @ 300 VDC
Power Line Protection
1 kV burst (EN 61000-4-4: EFT/B), 2 kV surge (EN 61000-4-5)
Connector
CN2610/2650: 8-pin RJ45; CN2650I: DB9 male, 8-pin RJ45
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
MTBF (mean time between failures)
CN2650I AC models: 99,320 hrs; CN2650I-8-HV-T: 191,326 hrs; CN2650I-16-HV-T: 116,924 hrs
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Flow Control
RTS/CTS, DTR/DSR, XON/XOFF
EMC
55022/24
RS-485 Data Direction Control
ADDC® (Automatic Data Direction Control)
Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, ARP, PPPoE, DDNS
Standard
Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM, Disabled
EMI
EN 55022 Class A, FCC part 15 Subpart B Class A
IP Routing
Static, RIP-I, RIP-II
Stop Bits
1, 1.5, 2
RS-422
Tx+, Tx-, Rx+, Rx-, GND
Console Port
Dedicated RS-232 console port on rear panel (8-pin RJ45)
Baudrate
50 bps to 921.6 kbps
Altitude
Up to 2000 m
Magnetic Isolation
1.5 kV built-in

Description

8 ports RS-232/422/485 Terminal server with DB9 connector, Dual 100-200VAC input with adapter with 2 KV isolation
