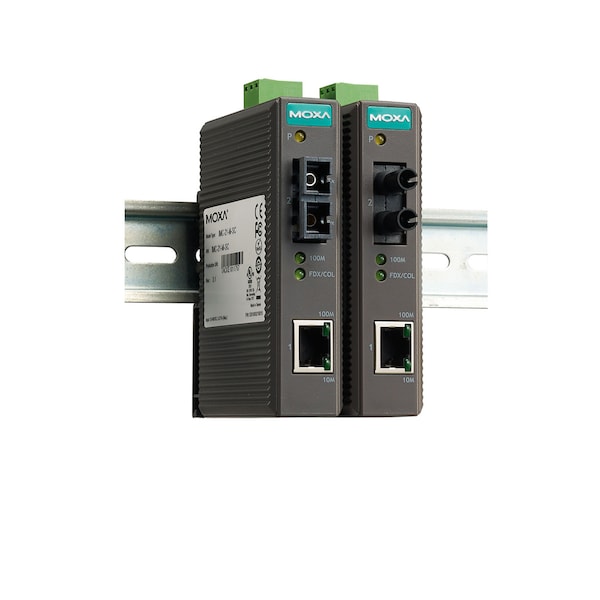

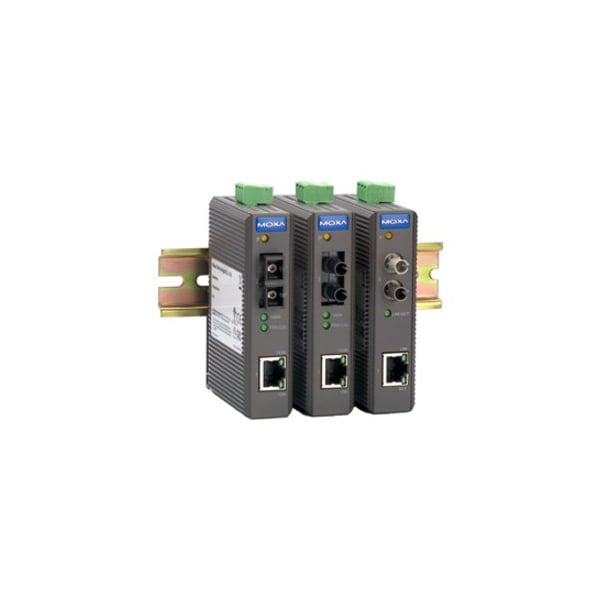

Entry-Level Indust. Media Converter, Single Mode, Sc, -10 To 60 DegreeC

Mfr # IMC-21-S-SC
Zoro # G4394917

392.99

Free Shipping & Returns

Key Features

Standards

MIL-HDBK-217F

100BaseFX Ports (single-mode SC connector)

IMC-21-S-SC: 1

Overload Current Protection

Supported

IEC 61000-4-3 RS

80 MHz to 1 GHz: 3 V/m

Input Current

271 mA @ 12 to 48 VDC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: IMC-21-S-SC
Zoro #: G4394917
UPC #: -
Country of Origin: Taiwan, Province of China

Dimensions

Dimensions: 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)

Details

Standards: MIL-HDBK-217F
100BaseFX Ports (single-mode SC connector): IMC-21-S-SC: 1
Overload Current Protection: Supported
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
Input Current: 271 mA @ 12 to 48 VDC
10/100BaseT(X) Ports (RJ45 connector): 1
Power Consumption: 271 mA @ 12 to 48 VDC
Vibration: IEC 60068-2-6
Operating Temperature: -10 to 60°C (14 to 140°F)
Installation: DIN-rail mounting
IP Rating: IP30
Environmental Testing: IEC 60068-2-1;IEC 60068-2-2;IEC 60068-2-3
Magnetic Isolation Protection: 1.5 kV (built-in)
EMC: EN 55032/24
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
Housing: Plastic
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m;IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV;IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV;IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m;IEC 61000-4-8 PFMF;IEC 61000-4-11
Ambient Relative Humidity: 5 to 95% (non-condensing)
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
Input Voltage: 12 to 48 VDC
EMI: CISPR 32, FCC Part 15B Class A
Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
Safety: EN 60950-1, UL 60950-1

Description

Entry-level Industrial Media Converter, single mode, SC, -10 to 60°C
