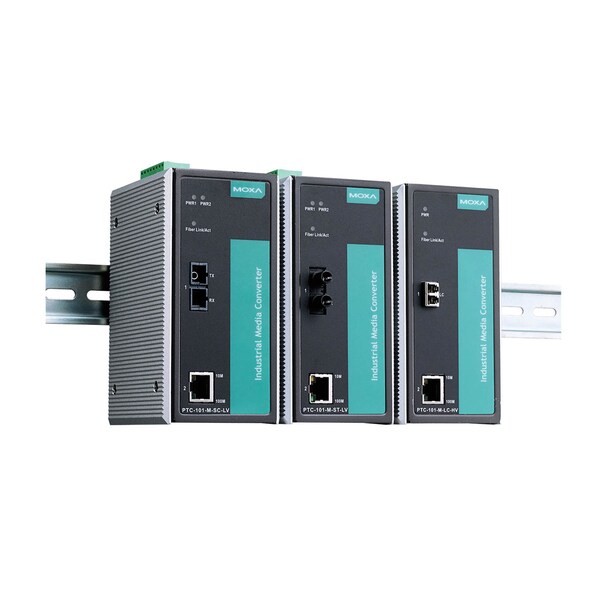

Indust. 10/100Baset, 100Basefx Mdia Cnvrter, Mltimode, Ptc-101-M-Lc-Lv

MIL-HDBK-217F

PTC-101-M-LC-HV/M-LC-LV: 1

IEC 60068-2-1;IEC 60068-2-14;IEC 60068-2-2;IEC 60068-2-3

EN 55032/24

IEC 60068-2-6

1

150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m

-40 to 85°C (-40 to 185°F)

-40 to 85°C (-40 to 185°F)

LV-DC models: 150 mA @ 20 to 72 VDC;HV-AC models: 200 to 350 mA @ 100 to 240 VAC;HV-DC models: 47 mA @ 88 VDC

Contact: 8 kV; Air: 15 kV

LV-DC models: 20 to 72 VDC;HV-AC models: 100 to 240 VAC;HV-DC models: 88 to 300 VDC

Power: 4 kV; Signal: 4 kV

5 to 95% (non-condensing)

CISPR 32, FCC Part 15B Class A

EN 60950-1, UL 60950-1

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m;IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV;IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV;IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m;IEC 61000-4-8 PFMF;IEC 61000-4-11

DIN-rail mounting

1.5 kV (built-in)

Metal

Supported

IEC 61850-3

80 MHz to 1 GHz: 3 V/m

LV-DC models: 150 mA @ 20 to 72 VDC;HV-AC models: 200 to 350 mA @ 100 to 240 VAC;HV-DC models: 47 mA @ 88 VDC
