- MFR #

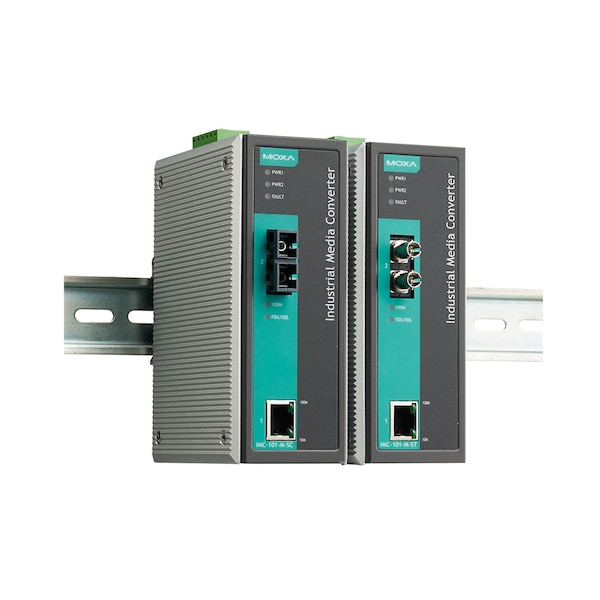

- IMC-101-M-ST-IEX
- Zoro #
- G4392570
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Standards
- MIL-HDBK-217F
- IP Rating
- IP30
- Input Voltage
- 12 to 45 VDC
- IEC 61000-4-2 ESD
- Contact: 6 kV; Air: 8 kV
- Installation
- DIN-rail mounting
- Operating Temperature
- Standard Models: 0 to 60°C (32 to 140°F);Wide Temp. Models: -40 to 75°C (-40 to 167°F);0 to 60°C (32 to 140°F);-40 to 75°C (-40 to 167°F)
- EMC
- EN 55032/24
- Environmental Testing
- IEC 60068-2-1;IEC 60068-2-2;IEC 60068-2-3
- 100BaseFX Ports (multi-mode ST connector)
- IMC-101-M-ST/M-ST-IEX Series: 1
- EMI
- CISPR 32, FCC Part 15B Class A
- IEC 61000-4-3 RS
- 80 MHz to 1 GHz: 10 V/m
- Overload Current Protection
- Supported
- Safety
- EN 60950-1, UL 60950-1
- IEC 61000-4-4 EFT
- Power: 2 kV; Signal: 1 kV
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Vibration
- IEC 60068-2-6
- Hazardous Locations
- Standard models: UL/cUL Class I Division 2 Groups A/B/C/D;-IEX models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
- Wide Temp. Models
- -40 to 75°C (-40 to 167°F)
- Power Connector
- Terminal block
- Housing
- Metal
- Standard Models
- 0 to 60°C (32 to 140°F)
- Magnetic Isolation Protection
- 1.5 kV (built-in)
- Power Consumption
- 200 mA @ 12 to 45 VDC
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- IEC 61000-4-6 CS
- 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
- IEC 61000-4-5 Surge
- Power: 2 kV; Signal: 1 kV
- Input Current
- 200 mA @ 12 to 45 VDC
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m;IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV;IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV;IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m;IEC 61000-4-8 PFMF;IEC 61000-4-11
- 10/100BaseT(X) Ports (RJ45 connector)
- 1
