  9. Indust. Rs-232/422/485 Converter. 2Kv Isolation

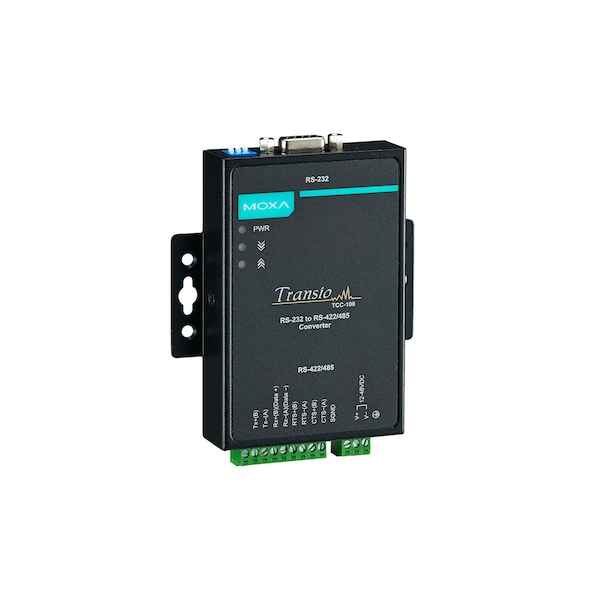

Moxa Indust. Rs-232/422/485 Converter. 2Kv Isolation TCC-100I - main

Indust. Rs-232/422/485 Converter. 2Kv Isolation

  • Mfr # TCC-100I

  • Zoro # G4574799

product price: $299.99
/ea
Free Shipping & Returns

Key Features

EMS
IEC 61000-4-2 (ESD) Level 2; IEC 61000-4-3 (RS) Level 2; IEC 61000-4-4 (EFT) Level 2; IEC 61000-4-5 (Surge) Level 2; IEC 61000-4-6 (CS) Level 2; IEC 61000-4-8 (SFMF) Level 1
Baudrate
50 bps to 921.6 kbps
Storage temperature
-40 to 85°C (-40 to 185°F)
Safety
UL 60950-1
EMI
FCC Part 15 Subpart B Class B
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCC-100I
Zoro #
G4574799
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)

Details

EMS
IEC 61000-4-2 (ESD) Level 2; IEC 61000-4-3 (RS) Level 2; IEC 61000-4-4 (EFT) Level 2; IEC 61000-4-5 (Surge) Level 2; IEC 61000-4-6 (CS) Level 2; IEC 61000-4-8 (SFMF) Level 1
Baudrate
50 bps to 921.6 kbps
Storage temperature
-40 to 85°C (-40 to 185°F)
Safety
UL 60950-1
EMI
FCC Part 15 Subpart B Class B
EMC
CE, FCC
Power Consumption
TCC-100/100-T: 85 mA @ 12 V; TCC-100I/100I-T: 150 mA @ 12 V
Optical Isolation
2 kV (TCC-100I/100I-T)
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Source of Input Power
Power input jack
Over Current Protection
Protects against two signals shorted together
Time
3,017,857 hrs
Housing
Metal
Signals
(interface selected by DIP switch); RS-422: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND; RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND; RS-485-2w: Data+, Data-, GND, TxD, RxD, RTS, CTS, GND
Ambient Relative Humidity
5 to 95% (non-condensing)
Voltage Reversal Protection
Protects against V+/V- reversal
Database
MIL-HDBK-217F
Connector
DB9 female, Terminal Block
Input Voltage
12 to 48 VDC
Operating temperature
Standard Models: -20 to 60°C (-4 to 140°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
ESD Protection
15 kV

Description

Industrial RS-232/422/485 Converter. 2KV Isolation

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
