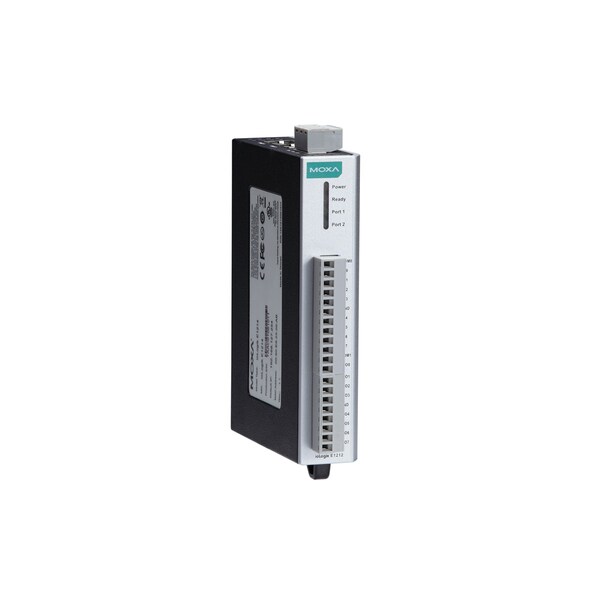

Remote Ethernet I/O W/ 4Ao, And 2Port Switch

DIN rail or wall

12 bits

EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP

IEC 60068-2-27

IEC 60068-2-6

Telcordia (Bellcore)

IEC 60068-2-32

4 channels

0 to 10 VDC, 4 to 20 mA

24 VDC nominal, 12 to 36 VDC

194 mA @ 24 VDC

I/O cable max. 14 AWG

UL/cUL Class I Diision 2, ATEX Zone 2

Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Internal register, 400 ohms

EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11

UL 508

2 switched 10/100 Mbps RJ45 ports

-40 to 85°C (-40 to 185°F)

10 mA (max.)

Up to 2000 m

3k VDC or 2k Vrms

±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C

1.5 kV magnetic isolation

888,656 hrs
