  11. Remote Ethernet I/O W/ 6Rtd, And 2Port Switch, -40 To 75 DegreeC

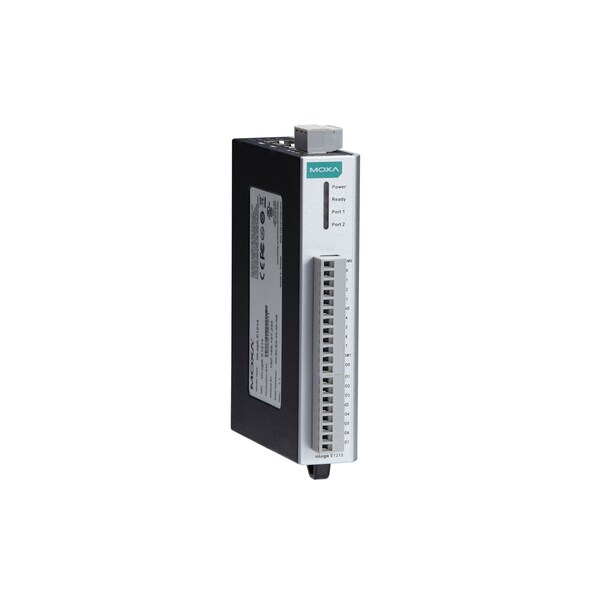

Moxa Remote Ethernet I/O W/ 6Rtd, And 2Port Switch, -40 To 75 DegreeC ioLogik E1260-T - main

Remote Ethernet I/O W/ 6Rtd, And 2Port Switch, -40 To 75 DegreeC

  • Mfr # ioLogik E1260-T

  • Zoro # G4573697

product price: $738.99
/ea
Free Shipping & Returns

Key Features

Mounting
DIN rail or wall
Power Consumption
110 mA @ 24 VDC
Operating temperature
Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Protection
1.5 kV magnetic isolation
Hazardous Location
UL/cUL Class I Diision 2, ATEX Zone 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik E1260-T
Zoro #
G4573697
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Mounting
DIN rail or wall
Power Consumption
110 mA @ 24 VDC
Operating temperature
Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Protection
1.5 kV magnetic isolation
Hazardous Location
UL/cUL Class I Diision 2, ATEX Zone 2
Altitude
Up to 2000 m
Database
Telcordia (Bellcore)
Isolation
3k VDC or 2k Vrms
Shock
IEC 60068-2-27
Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP
RTD Inputs
6 channels
Input Impedance
625k ohms
EMI
EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Input connection
2 or 3 wire
Input Type
PT50, PT100, PT200, PT500 (-200 to 850°C); PT1000 (-200 to 350°C); Resistance of 310, 620, 1250, and 2200 ohms
Ambient Relative Humidity
5 to 95% (non-condensing)
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11
Accuracy
±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C
Wiring
I/O cable max. 14 AWG
Time
660,260 hrs
Freefall
IEC 60068-2-32
Sampling Rate
All channels: 12 samples/sec; Per channel: 2 samples/sec; Only one channel enabled: 12 samples/sec
Vibration
IEC 60068-2-6
Ethernet
2 switched 10/100 Mbps RJ45 ports
Power Input
24 VDC nominal, 12 to 36 VDC
Storage temperature
-40 to 85°C (-40 to 185°F)
Resolution
0.1°C or 0.1 ohm
Safety
UL 508

Description

Remote Ethernet I/O with 6RTD, and 2-port Switch, -40 to 75°C
