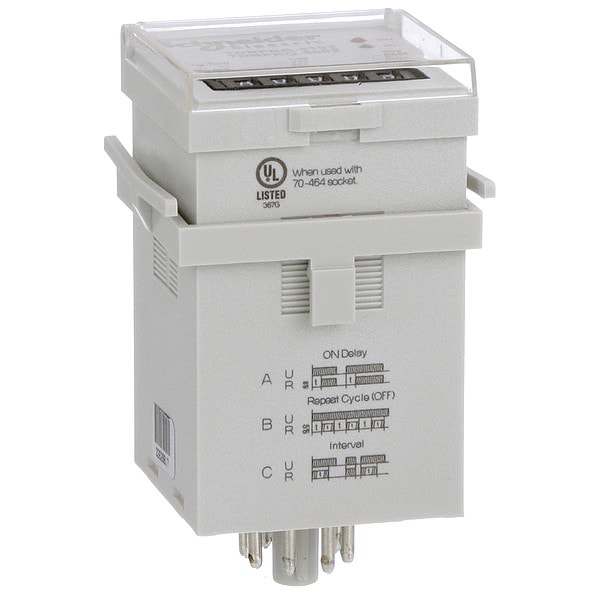

Multifunction Time Delay Relay, Octal, 3 Functions 240V AC, DPDT

  • Mfr # TDRPRO-5102
  • Zoro # G1181564
product price:
$
129.99
/ea
Free Shipping & Returns

Key Features

Delay Function
Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off)
Number of Delay Functions
3
Minimum Time Setting
0.1 sec
Maximum Time Setting
9,990 hr
Base Shape
Octal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TDRPRO-5102
Zoro #
G1181564
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height - Relay
3.38 in
Depth
1.88 in (47.8 mm)
Width
1.89 in (48 mm)
Body Depth
4.5 in
Body Height
1.9 in
Overall Depth
4.73 in
Body Width
1.89 in
Height
2.83 in (71.95 mm)

Details

Item
Multifunction Time Delay Relay
Delay Function
Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off)
Number of Delay Functions
3
Minimum Time Setting
0.1 sec
Maximum Time Setting
9,990 hr
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 12 to 240V
Contact Rating (DC)
12 A @ 12 to 240V
Socket
1EGP3, 1EGP5, 5X852
Contact Material
Silver Alloy
Socket Code
A
Status Indicator
LED
Contact Amp Rating (Resistive)
12A
Coil Rating
2.5VA
Standards
IEC 61810-1, RoHS Compliant, UL Listed
Number of Functions
3
Electrical Connection
Socket
Operating Functions
1, 2, 4, 5
Input Voltage
12 to 240V AC/DC
Adjustment Method
Thumb Wheel
Frequency
50/60 Hz
Compatible with Manufacturer Model Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
Weight
4.23 oz
Mounting Style
Through Panel
Sealing
Sealed
Maximum Operating Temperature
131 Degrees F
IP Rating
IP40
Reset Method
Time-Limit Reset
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Operating Time Accuracy
+/-0.1%
Power Consumption
2.5 VA
Minimum Operating Temperature
14 Degrees F
Compatible Manufacturer Part Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
Compatible Manufacturer Model Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
Product Certifications
UL
Time Delay Type
Multifunction
Mounting Support
Socket
Rated Operational Current
12 A at 120 V AC (on resistive load); 12 A at 240 V AC (on resistive load); 12 A at 30 V DC (on resistive load)
Operating Time
25 ms
Voltage Range
0.85...1.15 Un
Control Type
Dial front
Motor Power HP
1 hp 240 V AC; 0.5 hp 120 V AC
Dielectric Strength
2500 V between input and output
Local Signalling
1 LED red, blinking timing in progress; 1 LED per input green
Brake Release Time
25 ms
Power consumption in W
2 W 12...240 V
Reset Time
150 ms maximum
Ambient Air Temperature for Operation
14 to 131°F (-10 to 55°C)
Repeat Accuracy
+/- 0.1 % of the measuring range
Time Delay Range
100 ms...9990 hr in steps of 0.1 s; 100 ms...9990 hr in steps of 1 second; 100 ms...9990 hr in steps of 0.1 min; 100 ms...9990 hr in steps of 1 min; 100 ms...9990 hr in steps of 0.1 h; 100 ms...9990 hr in steps of 1 h; 100 ms...9990 hr in steps of 10 h
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Rated Supply Voltage
12...240 V AC/DC 50...60 Hz
Product Range
Legacy
Compatible with Mfr. Model No.
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
Compatible Mfr. Model Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
For Manufacturer Part Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1
Compatible with Mfr. Model Number
16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1

Description

Multi-Function Time Delay Relay, Adjustment Method Thumb Wheel, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 12 A @ 12 to 240V, Contact Rating (DC) 12 A @ 12 to 240V, Current Rating 12 A, Number of Delay Functions 3, Delay Function Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off), Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP40, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec
