  11. Remote Ethernet I/O W/ 8Tc, And 2Port Switch
Shop All Programmable Logic Controllers
Moxa

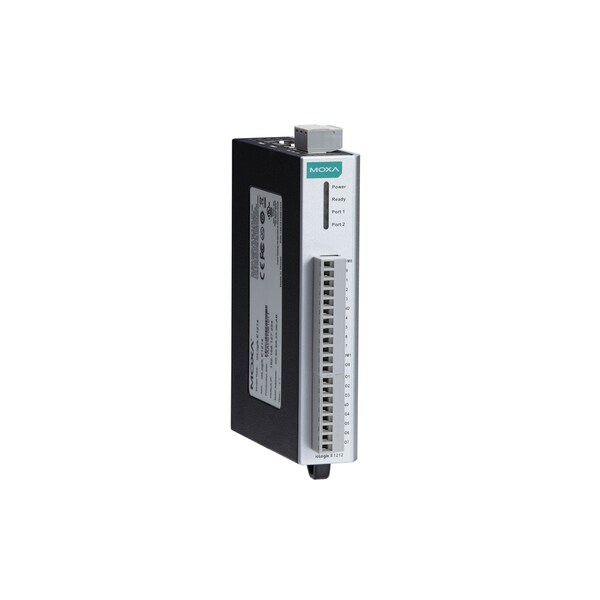

Remote Ethernet I/O W/ 8Tc, And 2Port Switch

product price: $503.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting DIN rail or wall
  • Ethernet 2 switched 10/100 Mbps RJ45 ports
  • Input Impedance 10M ohms
  • Power Input 24 VDC nominal, 12 to 36 VDC
  • Database Telcordia (Bellcore)
See all product information

Product Information

Dimensions

Dimensions 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Mounting DIN rail or wall
Ethernet 2 switched 10/100 Mbps RJ45 ports
Input Impedance 10M ohms
Power Input 24 VDC nominal, 12 to 36 VDC
Database Telcordia (Bellcore)
Shock IEC 60068-2-27
Protection 1.5 kV magnetic isolation
Hazardous Location UL/cUL Class I Diision 2, ATEX Zone 2
EMI EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Sensor Type J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C), E (-200 to 900°C), R (-50 to 1600°C), S (-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C)
Vibration IEC 60068-2-6
Storage temperature -40 to 85°C (-40 to 185°F)
Time 631,418 hrs
Resolution 16 bits
Wiring I/O cable max. 14 AWG
Isolation 3k VDC or 2k Vrms
Accuracy ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C
Safety UL 508
Sampling Rate All channels: 12 samples/sec; Per channel: 1.5 samples/sec; Only one channel enabled: 12 samples/sec
Millivolt Type Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV; Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)
Operating temperature Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Thermocouple Inputs 8 channels
Altitude Up to 2000 m
Freefall IEC 60068-2-32
Ambient Relative Humidity 5 to 95% (non-condensing)
Power Consumption 118 mA @ 24 VDC
EMS EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11
Protocols Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP

Description

Remote Ethernet I/O with 8TC, and 2-port Switch
