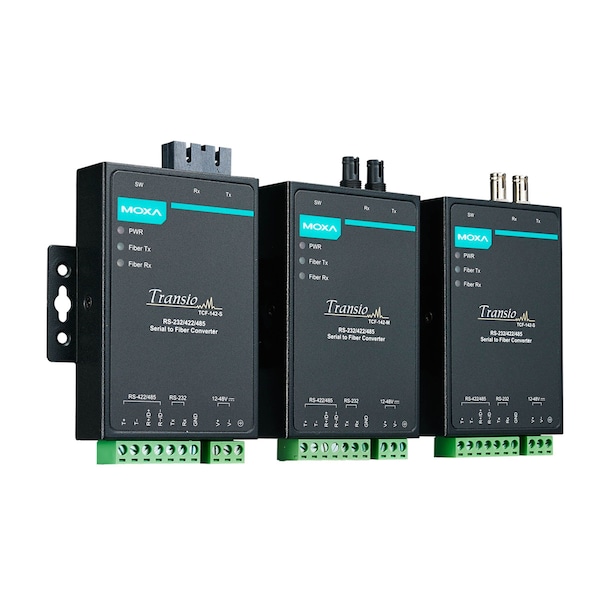

Rs-232/422/485 To Fiber Optic Converter. St Single-Mode.

Mfr # TCF-142-S-ST
Zoro # G4578238

969.99

Free Shipping & Returns

Key Features

Housing

Aluminum (1 mm)

Tx Output

Single-mode: > -5 dBm; Multi-mode: > -5 dBm

Fiber Connector

SC or ST

RS-232 Signals

Tx, Rx, GND

Power Consumption

140 mA @ 12 V

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: TCF-142-S-ST
Zoro #: G4578238
UPC #: -
Country of Origin: Taiwan, Province of China

Dimensions

Dimensions: Without ears: 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in); With ears: 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Wavelength: Single-mode: 1310 nm; Multi-mode: 850 nm

Details

Housing: Aluminum (1 mm)
Tx Output: Single-mode: > -5 dBm; Multi-mode: > -5 dBm
Fiber Connector: SC or ST
RS-232 Signals: Tx, Rx, GND
Power Consumption: 140 mA @ 12 V
Rx Sensitivity: Single-mode: -25 dBm; Multi-mode: -20 dBm
EMC: CE, FCC
Over Current Protection: 1.1 A (protects against two signals shorted together)
Power Line Protection: 2 KV Burst (EFT), EN61000-4-4; 2 KV Surge, EN61000-4-5
RS-485-4w Signals: TxD+, TxD-, RxD+, RxD-, GND
Time: 780,480 hrs
Operating temperature: Standard Models: 0 to 60°C (32 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
ESD Protection: 15 KV for all signals
Input Voltage: 12 to 48 VDC
EMI: FCC Part 15 Subpart B Class B, EN 55022 Class B
Storage temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
RS-485-2w Signals: Data+, Data-, GND
Cable Requirements: Single-mode: 8.3/125, 8.7/125, 9/125, or 10/125μm; Multi-mode: 50/125, 62.5/125, or 100/140μm
Ring Transmission: Half-duplex
Connector: Terminal Block
Database: Telcordia (Bellcore), GB
Safety: UL 60950-1
Baudrate: 50 bps to 921.6 Kbps
Transmission Distance: Single-mode: 40 km; Multi-mode: 5 km
RS-422 Signals: TxD+, TxD-, RxD+, RxD-, GND
EMS: EN 61000-4-2 (ESD) Level 3; EN 61000-4-3 (RS) Level 2; EN 61000-4-4 (EFT) Level 2; EN 61000-4-5 (Surge) Level 2; EN 61000-4-6 (CS) Level 2; EN 61000-4-8 (SFMF) Level 1
Point-to-Point Transmission: Half-duplex or full-duplex
Voltage Reversal Protection: Protects against V+/V- reversal

Description

RS-232/422/485 to Fiber Optic Converter. ST Single-mode.
