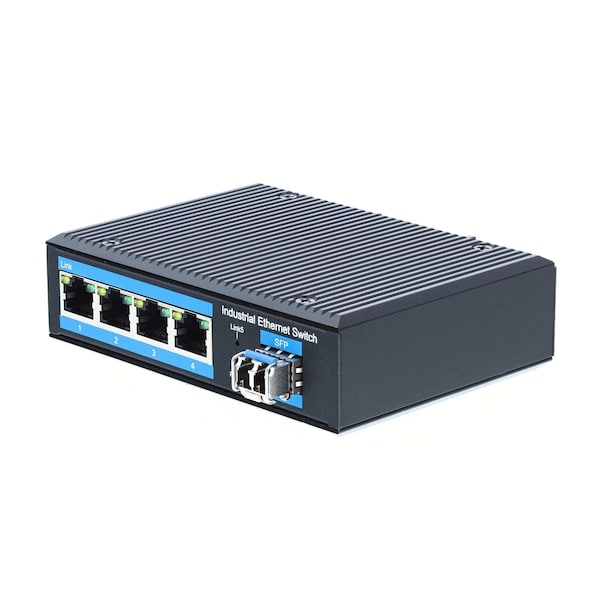

Industrial Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, 4 Port
Mfr # IT-1000SM20-LC-04
Zoro # G714914140
Key Features
Specifications
Product Information
Details
Description
The Industrial Media Converter is a high-performance device designed to convert data signals between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. Compliant with IEEE 802.3z and IEEE 802.3AB standards, this converter supports both 10/100/1000Base-T and 1000Base-LX applications, enabling data transmission up to 20km via fiber-optic cable.Equipped with single fiber optic connectors TX and RX, an RJ-45 jack, and an external power supply receptacle, the converter features three LED indicators for easy monitoring of power, UTP Link/Activity, Fiber Link/Activity, Full duplex, and data rates. It automatically configures for Full or Half Duplex operation.This compact, cost-effective, and reliable converter is suitable for standalone or DIN-Rail mounted applications, allowing multiple units to be attached to a single DIN-Rail.Key Features:- Data Rate: 10/100/1000M with Auto-Negotiation- Mode: UTP Half or Full Duplex- Optical wavelength: 1310 nm- Fiber Type: Single Mode 9/125 micron- Connectors: One UTP, Two LC Fiber- Max Distance: 20 km- Power Supply: Input 100-240Vac 1A, Output DC 24V 1A- Optical Output Power: -10 to -6 dBm- Optical Receiver Sensitivity: -23 dBm- Saturability: greater than or equal to -3 dBmIndustry Standards Compliance:- EMI: FCC/CE/LVD/EMC- EMS: IEC61000-4-2 ESD: +/-8kV contact, +/-15kV air IEC61000-4-3 RS: 10V/m 80MHz-2GHz IEC61000-4-4 EFT: Power Port: +/-4kV; Data Port: +/-2kV IEC61000-4-5 Surge: Power Port: +/-2kV/DM, +/-4kV/CM; Data Port: +/-2kV IEC61000-4-6 CS: 3V 10kHz-150kHz; 10V150kHz-80MHz IEC61000-4-16 Common mode conduction: 30V cont., 300V 1s- Shock: IEC 60068-2-27- Free Fall: IEC 60068-2-32- Vibration: IEC 60068-2-6Note: Mode Conditioning cable recommended if running over legacy Multimode Backbone.
- •Multiple Device Connectivity: Equipped with 4 RJ45 ports, allowing for seamless connection of multiple devices.
- •Long-Distance Transmission: Supports singlemode fiber transmission up to 20 kilometers for extended network reach.
- •Gigabit Speed: Delivers high-performance data transfer with 1000Base-LX Gigabit Ethernet.
- •Durable and Reliable: Industrial-grade design ensures performance in harsh environments.
- •Optimized for 1310nm Wavelength: Enhances signal reliability and efficiency for long-distance fiber communications.
