Shop MOXA

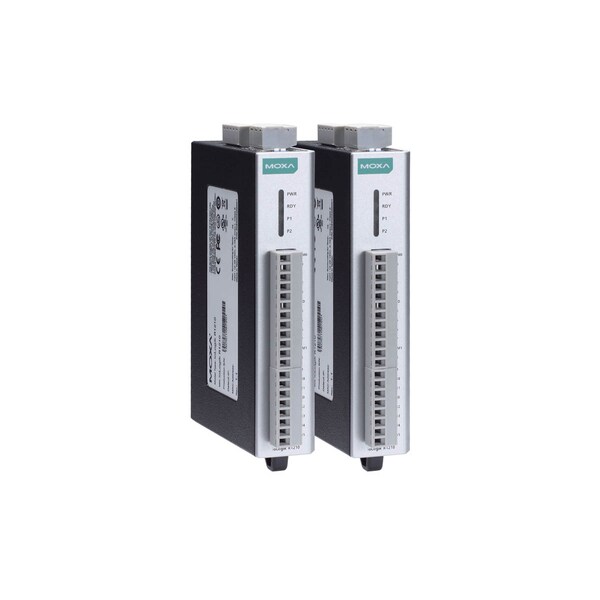

Rs-485 Remote I/O, 6 Dis, 6 Relays, -40 To 85 Degrees C Operating Temperature.

  • Mfr # ioLogik R1214-T

  • Zoro # G4571746

product price:
$
480.99
/ea
Free Shipping & Returns

Key Features

Operating temperature
Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Pulse Output
0.3 Hz at rated load
Serial Line Protection
ESD Protection: 15 kV; Surge Protection: 1 kV
Contact Current Rating
Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
Initial Insulation Resistance
1000 M ohms (min.) @ 500 VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ioLogik R1214-T
Zoro #
G4571746
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Operating temperature
Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Pulse Output
0.3 Hz at rated load
Serial Line Protection
ESD Protection: 15 kV; Surge Protection: 1 kV
Contact Current Rating
Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
Initial Insulation Resistance
1000 M ohms (min.) @ 500 VDC
Storage temperature
-40 to 85°C (-40 to 185°F)
Mechanical Endurance
5,000,000 operations
Safety
UL 508
Common Type
6 points per COM
Contact Resistance
100 m ohms (max.)
Breakdown Voltage
500 VAC
Baudrate
1200 to 921.6 kbps (default = 9600)
Wiring
I/O cable max. 16 AWG
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Type
Form A (N.O.) power relay
Relay On/Off Time
1500 ms (Max.)
Protocols
Modbus RTU
EMS
EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-5 (Surge) Level 2; IEC 61000-4, IEC 61000-6
Ambient Relative Humidity
5 to 95% (non-condensing)
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32
High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Digital Inputs
6 channels
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
Interface
RS-485-2w: Data+, Data-, GND (5-contact terminal block for two serial port)
Counter Frequency
2.5 kHz
Wet Contact (DI to COM)
On: 10 to 30 VDC; Off: 0 to 3 VDC
Parity
None, Even, Odd (default = None)
Power Consumption
207 mA @ 24 VDC
Stop Bits
1, 2 (default = 1)
Dry Contact
On: short to GND; Off: open
I/O Mode
DI or Event Counter
Data Bits
8
Relay Outputs
6 channels
Isolation
3k VDC or 2k Vrms
Electrical Endurance
100,000 operations @ 5 A resistive load
Digital Filtering Time Interval
Software Configurable

Description

RS-485 remote I/O, 6 DIs, 6 Relays, -40 to 85°C operating temperature.
