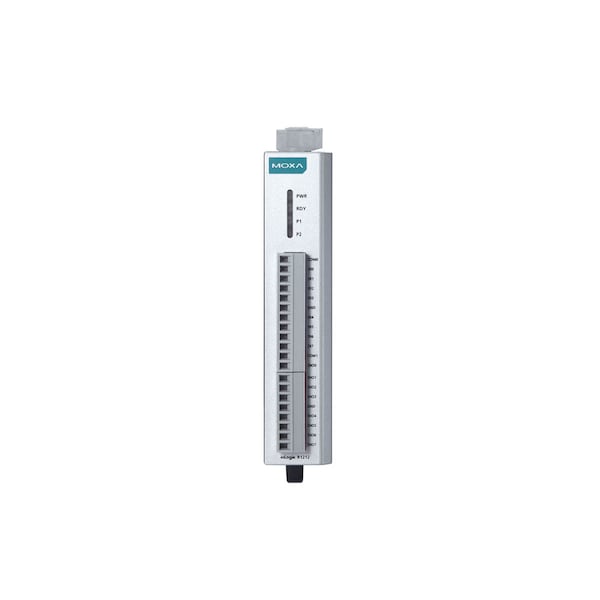

Rs-485 Remote I/O, 8 Dis, 8 Dios, -40 To 85 DegreeC Operating Temperature

  • Mfr # ioLogik R1212-T

  • Zoro # G4578387

product price:
$
380.99
/ea
Free Shipping & Returns

Key Features

Storage temperature
-40 to 85°C (-40 to 185°F)
Isolation
3k VDC or 2k Vrms
Serial Line Protection
ESD Protection: 15 kV; Surge Protection: 1 kV
Baudrate
1200 to 921.6 kbps (default = 9600)
Operating temperature
Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ioLogik R1212-T
Zoro #
G4578387
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Storage temperature
-40 to 85°C (-40 to 185°F)
Isolation
3k VDC or 2k Vrms
Serial Line Protection
ESD Protection: 15 kV; Surge Protection: 1 kV
Baudrate
1200 to 921.6 kbps (default = 9600)
Operating temperature
Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F)
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
Data Bits
8
Vibration
IEC 60068-2-6
Power Consumption
187 mA @ 24 VDC
Pulse Output Frequency
5 kHz
Ambient Relative Humidity
5 to 95% (non-condensing)
Wet Contact (DI to COM)
On: 10 to 30 VDC; Off: 0 to 3 VDC
Dry Contact
On: short to GND; Off: open
Parity
None, Even, Odd (default = None)
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
Over-temperature Shutdown
175°C (typical), 150°C (min.)
I/O Mode
DI or Event Counter, DO or Pulse Output
Interface
RS-485-2w: Data+, Data-, GND (5-contact terminal block for two serial port)
Current Rating
200 mA per channel
Common Type
8 points per COM
Digital Inputs
8 channels
Safety
UL 508
Protocols
Modbus RTU
High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Over-voltage Protection
45 VDC
Configurable DI/Os
8 channels
Wiring
I/O cable max. 16 AWG
Counter Frequency
2.5 kHz
Type
Sink
Over-current Protection
2.6 A (4 channels @ 650 mA)
EMS
EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-5 (Surge) Level 2; IEC 61000-4, IEC 61000-6
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Digital Filtering Time Interval
Software Configurable
Stop Bits
1, 2 (default = 1)

Description

RS-485 remote I/O, 8 DIs, 8 DIOs, -40 to 85°C operating temperature.
