Shop MRC

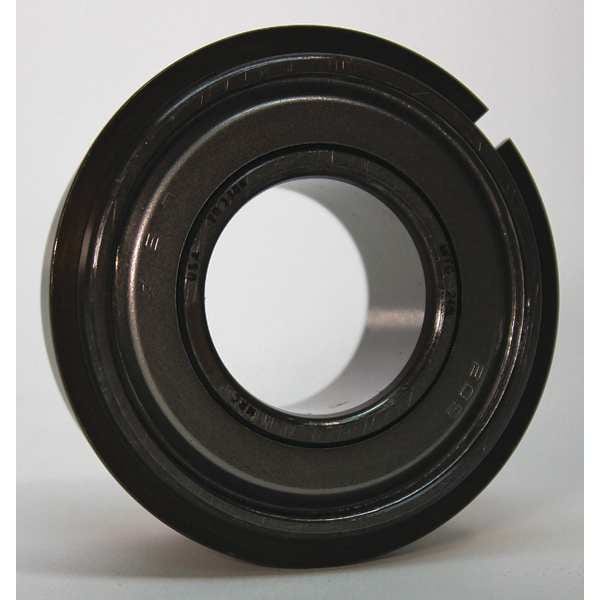

Bearing, 50mm, Double Shield and Snap-Ring

  • Mfr # 5310MFFG

  • Zoro # G0259616

product price:
$
436.99
/ea
Free Shipping & Returns

Key Features

Contact Angle (Degree)
30 Degrees
Bore Dia.
50 mm
Outside Dia.
110 mm
Width
44.45 mm
Cage Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5310MFFG
Zoro #
G0259616
UPC #
-
Country of Origin
Multiple
Item
Angular Contact Ball Bearing
Contact Angle (Degree)
30 Degrees
Cage Material
Steel
Type
Double Row Double Shield and Snap-Ring
Dynamic Load Capacity (N)
95,200 N
Static Load Capacity (Lb.)
21,400 lb
Static Load Capacity (N)
95,000 N
Temp. Range (F)
0 Degrees to 257 Degrees
Lubrication
Exxon Polyrex
Max. RPM
5,300 RPM
Dynamic Load Capacity (Lb.)
21,400 lb
ABEC Tolerance
1
Maximum Temperature
257 Degrees F
Minimum Temperature
-4 Degrees F
Static Radial Load Capacity
95,000 N
Ring Material Grade
AISI 52100
Matched Bearing Type
Not Matched/Single Bearing
Contact Bearing Type
Angular Contact
Lubricant Material
Mobil Polyrex EM
Closure
Double Shielded
Contact Angle
30 Degrees
Maximum Speed
5,300 RPM
Number of Rows
Two
Ring Material
Alloy Steel
Bearing Industry Number
3310/5310
System of Measurement
Metric
Dynamic Radial Load Capacity
95,200 N
Load Direction
Radial
ABEC Rating
1
Industry Number
3310/5310

Description

Angular Contact Ball Bearing, Bearing Industry Number 3310/5310, Bore Diameter 50 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Mobil Polyrex EM, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 5,300 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 110 mm, Overall Width 44.4 mm, Ring Material Alloy Steel, System of Measurement Metric
