  11. ALTAIR 4XR Multigas Detector: LEL, O2, H2S & CO with 4-gas Cylinder & Regulator.
Msa Safety ALTAIR 4XR Multigas Detector: LEL, O2, H2S & CO with 4-gas Cylinder & Regulator. 10178356 - main

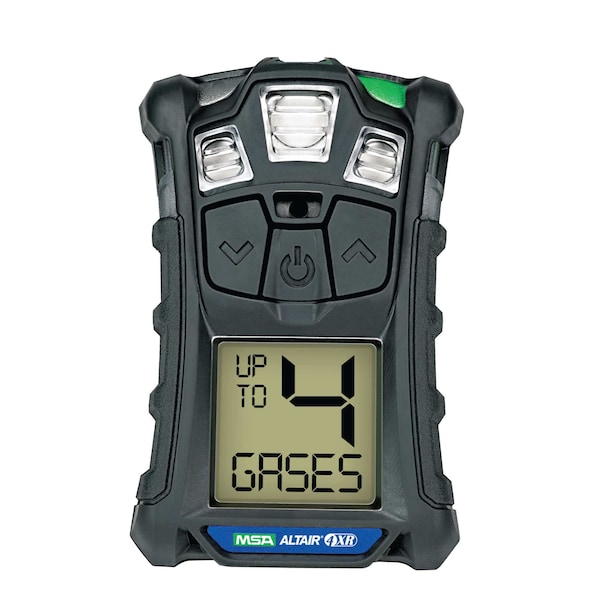

ALTAIR 4XR Multigas Detector: LEL, O2, H2S & CO with 4-gas Cylinder & Regulator.

  • Mfr # 10178356

  • Zoro # G0959091

product price: $2,524.99
/ea
Item requires special delivery charges. A $135.00 per item surcharge will be applied.

Key Features

Gas Detected
Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Carbon Monoxide (Alarm 1 - 35 ppm, Alarm 2 - 50 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23.5%)
Battery Life
1 day
Operating Temp. Range
-40 Degrees to 140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10178356
Zoro #
G0959091
UPC #
641817120521
Country of Origin
United States

Dimensions

Width
6 in
Height
4 in
Manufacturer Warranty Length
4 yr
Overall Width
6 in
Overall Height
4 in
Overall Depth
2 in

Details

Item
Multi-Gas Detector
Gas Detected
Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen
Alarm Type
Audible, Vibrating, Visual
Alarm Setting
Carbon Monoxide (Alarm 1 - 35 ppm, Alarm 2 - 50 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23.5%)
Battery Life
1 day
Operating Temp. Range
-40 Degrees to 140 Degrees F
Standards
CAN/CSA C22.2 No. 152 Combustible Gas Detection Instruments C22.2 No. 152, CE 0080 Directive 2014/30/EU (EMC): EN50270 Type 2, EN61000-6-3, Directive 2014/34/EU (ATEX): II 1G Ex ia da IIC T4 Ga, Ex ia da IIC T4 Ga, IECEX, ISO 9001
Sensor Range
CO 0 to 1999 ppm, H2S 0 to 200 ppm, LEL 0 to 100%, O2 0 to 30% Vol.
IP Rating
IP68
Series
ALTAIR 4XR
Display Screen Type
Monochrome
Chemical Formula
CO, H2S, O2
Housing Color
Gray
Resolution
1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 1 ppm, Oxygen 0.1% vol
Features
Bluetooth Capability, Water Resistant, Standard Data Logging and Event Logging
Includes
34 L Calibration Cylinder, Calibration Cap with Tubing, Kit, Monitor, Regulator
Power Source
Battery
Data Logger
Yes
Includes Probe
No
Number of Gases Detected
4
Alert Type
Light, Sound, Vibration
Operating Humidity - Minimum
5 %
Hazardous Location Specification
Class I Divisions 1 Groups A, B, C, D, Class II Divisions 1 Groups E, F, G, Class III Divisions 1
Includes Regulator
Yes
Operating Temperature - Maximum
140 Degrees F
Sensor Life
4 yr
Resistance Properties
Water Resistant
Includes Charger
Yes
Temperature Code
T4
Operating Temperature - Minimum
-40 Degrees F
Measurement Range
Carbon Monoxide (0 to 1,999 ppm), Hydrogen Sulfide (0 to 200 ppm), LEL 0 to 100%, Oxygen (0 to 30% vol)
Battery Chemistry
Lithium Ion Polymer
Operating Humidity - Maximum
95 %
Display Type
Digital
Replaceable Battery
Yes
Rechargeable Battery
Yes

Description

Multi-Gas Detector, Replaceable Battery Yes, Product Type Multi-Gas Detector, Display Screen Type Monochrome, Includes Probe No, Housing Color Gray, Gas Detected Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, Communication Protocol Not Applicable, Series ALTAIR 4XR, Operating Humidity - Maximum 95 Percent, Rechargeable Battery Yes, Resistance Properties Water Resistant, Operating Humidity - Minimum 5 Percent, Temperature Code T4

Restrictions

Hazardous material
