Shop MULTIFAN

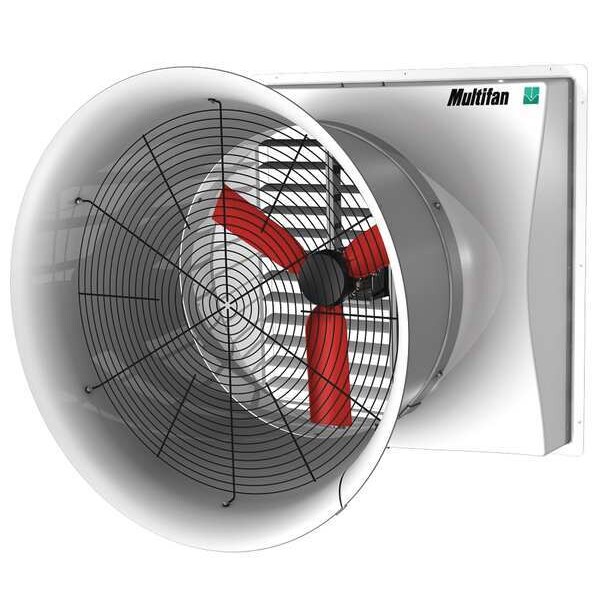

Agricultural Exhaust Fan, 240V, 23/32 HP

  • Mfr # C8E92K0M10038

  • Zoro # G9900037

product price:  $1,650.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Type
Preassembled High Efficiency, Direct Drive, Cone
Fan RPM
815
Full Load Amps
3.6 A
Height (In.)
50 1/2 in
Watts
730 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C8E92K0M10038
Zoro #
G9900037
UPC #
-
Country of Origin
Netherlands

Dimensions

Height (In.)
50 1/2 in
Max. Depth (In.)
50 1/2 in
Flange Width (In.)
2 in
Width (In.)
50 1/2 in
Cone Dia. (In.)
50 1/2 in
Venturi Depth (In.)
8 1/4 in
Propeller Dia. (In.)
36 in
Flange Width
2 in
Overall Width
50 1/2 in
Overall Depth
50 1/2 in
Overall Height
50 1/2 in
For Cut-Out Height
45 1/4 in
Overall Diameter
50 1/2 in
Manufacturer Warranty Length
3 yr
Blade Diameter
36 in
For Cut-Out Width
45 1/4 in

Details

Type
Preassembled High Efficiency, Direct Drive, Cone
Fan RPM
815
Full Load Amps
3.6 A
Watts
730 W
Frame Finish
Polished
CFM @ 0.000-In. SP
12,500
Phase
1
Voltage
240
Hz
60
Mounting Location
Wall
Includes
Cone, Exhaust Screen, Housing, Instructions, Intake Shutter
HP
3/4 hp
Motor Enclosure
Totally Enclosed Air Over
Opening Required H (In.)
45 1/4 in
Number of Blades
3
Max. Ambient Temp. (F)
104 Degrees F
Opening Required W (In.)
45 1/4 in
Frame Material
Fiberglass
Motor Insulation
Class F
Propeller Material
Polypropylene
CFM @ 0.150-In. SP
10,460
CFM @ 0.100-In. SP
11,200
Item
Agricultural Exhaust Fan
CFM @ 0.050-In. SP
11,900
Motor Type
3-Phase
CFM/Watt @ 0.000-In. SP
17.1
Bearing Type
Permanently Lubricated Sealed Ball
Motor RPM
815
Agency Compliance
BESS Labs, CURUS
Standards
BESS Labs, CURUS
Motor Horsepower
3/4 hp
Nameplate Voltage
240V AC
Assembled
Unassembled
Maximum Ambient Operating Temperature
104 Degrees F
Blade Material
Polypropylene
Motor Speed
815 RPM
Ventilation Type
Exhaust
Guard Finish
Smooth
Exhaust Airflow @ 0.000 in SP
12,500 cfm
Includes Motor
Yes
Exhaust Airflow @ 0.125 in SP
3,350 cfm
Exhaust Airflow @ 0.100 in SP
11,200 cfm

Description

Agricultural Exhaust Fan, Assembled Unassembled, Blade Diameter 36 in, Blade Material Polypropylene, Exhaust Airflow @ 0.000 in SP 12,500 cfm, For Cut-Out Height 45 1/4 in, For Cut-Out Width 45 1/4 in, Frame Finish Polished, Frame Material Fiberglass, Guard Finish Smooth, Includes Cone, Exhaust Screen, Housing, Instructions, Intake Shutter
