  10. /
  11. Corr Res Air Circ, 36 In, 12,000 cfm, 240V
Shop All Fan Speed Control
Multifan

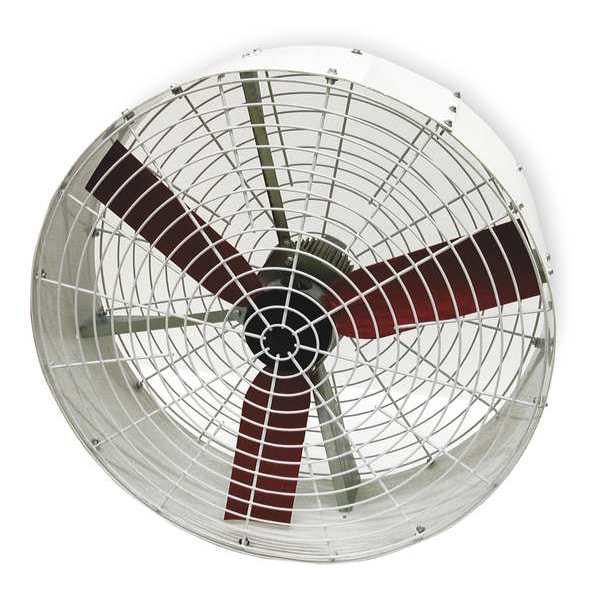

Corr Res Air Circ, 36 In, 12,000 cfm, 240V

original price: $1,344.99
13% off
new price: $1,157.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240V AC
  • Oscillating No
  • Includes Mounting Yoke
  • Sound Level 61 dBA
  • Blade Material Polypropylene
See all product information

Product Information

Dimensions

Blade Dia. 36"
Outside Dia. 37-1/2"
Max. Depth 17-1/4"
Height 37 1/2 in
Width 37 1/2 in
Shaft Dia. 3/4 in
Blade Diameter 36 in
Depth 17 1/4 in

Details

Item Corrosion-Resistant Industrial Fan
Voltage 240V AC
Oscillating No
Includes Mounting Yoke
Sound Level 61 dBA
Blade Material Polypropylene
Standards UL Recognized Motor
Oscillating / Non-Oscillating Non-Oscillating
CFM High 12,000
Watts 768
Phase 1
Motor Insulation Class F
Number of Blades 3
Thermal Protection Auto
Max. Ambient Temp. 104 Degrees F
Housing Material Polypropylene
Speeds 1
Motor RPM 770
Motor HP 1/2 hp
Wire Guard Finish Plastic Coated White
Fan Mounting Location Ceiling, Wall
Application Spot Cooling
Drive Type Direct Drive
Guard Material Steel
Requires Mounting Device and Adjustable Speed Control
Fan Style Corrosion Resistant
Motor Type Permanent Split Capacitor
Mobile/Stationary Stationary
Operating Amps 3.2
Motor Enclosure Totally Enclosed Air Over
Hz 60 Hz
Environmental Applications Industrial
Assembled Yes
Bearing Type Sealed Ball
Fan Accessory Style Corrosion Resistant
Number of Speeds 1
Air Flow 12,000 cfm
Oscillation Non-Oscillating

Description

Corrosion-Resistant Industrial Fan, Blade Dia. 36 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 240V AC, 1 Phase, CFM High 12,000, Motor HP 1/2 hp, Motor RPM 770, Operating Amps 3.2, Fan Mounting Location Fan Head Only, Fan Accessory Style Corrosion Resistant, Sound Level 61 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 768, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 37-1/2 In., Height 37 1/2 in, Width 37 1/2 in, Max. Depth 17-1/4 In.
