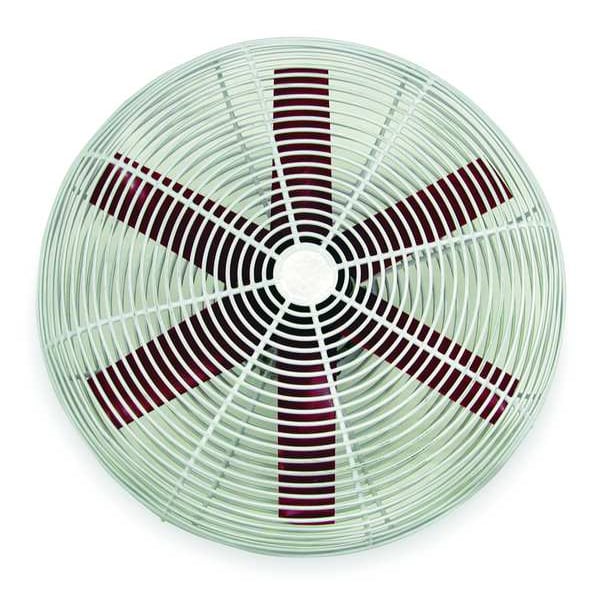

Multifan

Hardwired Corr Res Air Circ, 20 In

Multifan Hardwired Corr Res Air Circ, 20 In FXSTIR20-3/120
Hover or click to zoom Tap to zoom
  • Item: Corrosion-Resistant Industrial Fan
  • Voltage: 115V AC
  • Max. Depth: 14"
  • Fan Mounting Location: Ceiling, Wall
  • Drive Type: Direct Drive
  • Outside Dia.: 23"
  • Bearing Type: Sealed Ball
  • Application: Spot Cooling
See full product details
$566.92

Subtotal: $566.92

Multifan #FXSTIR20-3/120 Specifications

  • Item: Corrosion-Resistant Industrial Fan
  • Voltage: 115V AC
  • Max. Depth: 14"
  • Fan Mounting Location: Ceiling, Wall
  • Drive Type: Direct Drive
  • Outside Dia.: 23"
  • Bearing Type: Sealed Ball
  • Application: Spot Cooling
  • CFM High: 5500
  • Phase: 1
  • Blade Material: Polypropylene
  • Max. Ambient Temp.: 104 Degrees F
  • Oscillating / Non-Oscillating: Non-Oscillating
  • Cord Length: 10 ft.
  • Blade Dia.: 20"
  • Height: 23 in
  • Mobile/Stationary: Stationary
  • Requires: Mounting Device and Adjustable Speed Control
  • Environmental Applications: Industrial
  • Sound Level: 55 dBA
  • Hz: 60 Hz
  • Motor RPM: 1750
  • Motor Type: Permanent Split Capacitor
  • Fan Accessory Style: Corrosion Resistant
  • Oscillating: No
  • Includes: Mounting Yoke
  • Standards: UL Recognized Motor
  • Fan Style: Corrosion Resistant
  • Watts: 456
  • Operating Amps: 3.8
  • Speeds: 1
  • Shaft Dia.: 9/16 in
  • Number of Blades: 6
  • Assembled: Yes
  • Motor HP: 1/3 hp
  • Thermal Protection: Auto
  • Guard Material: Steel
  • Motor Enclosure: Totally Enclosed Air Over
  • Housing Material: Steel
  • Wire Guard Finish: Plastic Coated White
  • Width: 23 in
  • Motor Insulation: Class F
  • Number of Speeds: 1
  • Oscillation: Non-Oscillating
  • Blade Diameter: 20 in
  • Fan Cord Length: 10 ft
  • Depth: 14 in
  • Air Flow: 5,500 cfm
  • Product Type: Corrosion-Resistant Industrial Fan
  • Country of Origin (subject to change): Netherlands

Description

Corrosion-Resistant Industrial Fan, Blade Dia. 20 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115 V AC, 1 Phase, CFM High 5500, Motor HP 1/3 hp, Motor RPM 1750, Operating Amps 3.8, Fan Mounting Location Ceiling, Wall, Fan Accessory Style Corrosion Resistant, Sound Level 55 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 456, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 23 In., Height 23 in, Width 23 in, Max. Depth 14 In., Cord Length 10 ft.
