Shop MULTIFAN

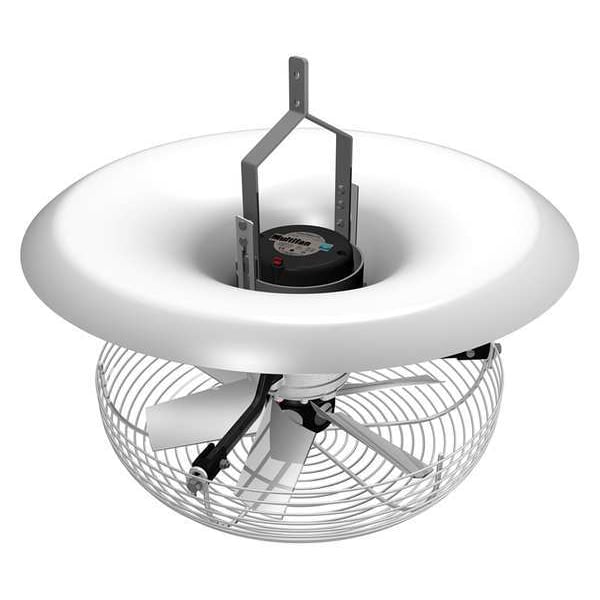

Vertical Recirculation Fan, 16 in Blade Dia, 8 Blades, Variable Speeds, 460V AC

  • Mfr # T6D40K4M81160

  • Zoro # G9899951


original price:  $812.99 , new price: $807.99
new price:  $807.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

Number of Blades
8
Blade Diameter
16 in
Number of Speeds
Variable
Voltage
460V AC
Includes
Exhaust Fan, Guard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T6D40K4M81160
Zoro #
G9899951
UPC #
-
Country of Origin
Netherlands

Dimensions

Blade Diameter
16 in
Max. Mounting Height
16 ft
Blade Dia.
16"
Mounting Height
9-1/2 to 16 ft.
Min. Mounting Height
10 ft

Details

Number of Blades
8
Number of Speeds
Variable
Voltage
460V AC
Includes
Exhaust Fan, Guard
Reversible
No
Phase
Three
Housing Finish
Electropolished
Air Flow
3,120 cfm
Amps
0.5 A
Item
Ceiling Fan
CFM @ 60 Hz
3296
Fan Housing Material
Polypropylene
Amps @ 50 Hz
0.34
Hz
60 Hz
Bearings
Permanently Lubricated Ball
Fan Blade Color
White
High CFM
3296
Speed Controllable
Yes
CFM @ 50 Hz
2972
Housing Color - Fans
White
Motor
Totally Enclosed Thermally Protected Split Capacitor
Watts @ 50 Hz
210
Fan Item
Vertical Recirculation Fan
Mount Type
Downrod
Blade Finish
Powder Coated
Full Load Amps
0.9
Max. Ambient Temp.
105 Degrees F
Speed Controllable - Fans
Yes
Amps @ 60 Hz
0.9
Housing Material - Fans
Polypropylene
Fan Voltage
460VAC
RPM @ 50 Hz
1330
RPM @ 60 Hz
1650
RPM
1,145 RPM
Standards
cCSAus, CE, cULus
Input Volts AC @ 60/50 Hz
460
Blade Material - Fans
Plastic
Housing Finish - Fans
Polished
Full Load Watts
220
Fan Watts
200 W
Watts @ 60 Hz
220
Light Kit
No
Fan Housing Color
White
Fan Mounting Location
Ceiling
Sound Level
47 dBA
Blade Material
Polypropylene
Motor HP
1/3 hp
Area Covered (Cooling) - Fans
1,000 sq ft
Airflow
3,120 cfm

Description

Ceiling Fan, 16 in Blade Diameter, 460V AC Voltage, 200 W Fan Watts, Phase Three, 3,120 cfm, Motor HP 1/3 hp, 1,145 RPM RPM, Max. Mounting Height 16 ft, Min. Mounting Height 10 ft, Number of Speeds Variable, Blade Material Polypropylene, Blade Finish Powder Coated, Fan Housing Color White, Housing Finish Electropolished, Fan Blade Color White, Number of Blades 8, Sound Level 47 dBA, Speed Controllable - Fans Yes, 0.5 A Amps, 60 Hz Hz, Max. Ambient Temp. 105 Degrees F, Light Kit No, Reversible No
