Shop DAYTON

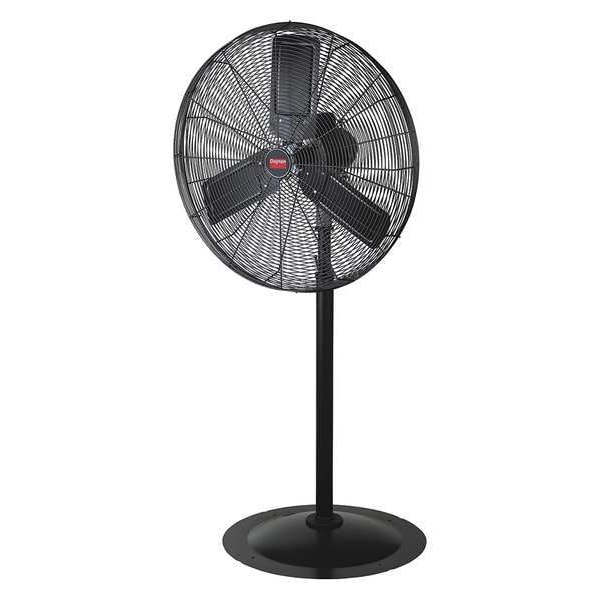

Light Duty Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V, 3,510/6,400 cfm, Oscillating

  • Mfr # 6ALE8
  • Zoro # G2034794

product price:
$
370.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6ALE8
Zoro #
G2034794
UPC #
190735360231
Country of Origin
Multiple
Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
3,510/6,400 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
74 dBA
Item
Freestanding Fan
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
Includes
Column, Mounting Hardware, Pedestal
Wire Guard Finish
Powder Coated
Motor Insulation
B
NEMA Plug Configuration
5-15P
Motor RPM
1100/850
Housing Material
Steel
Application
Spot Cooling and People Cooling
CFM Low
3510
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Motor Enclosure
Totally Enclosed Air-Over
Requires
Assembly
Number of Blades
3
Air Velocity @ 20 Ft.
440/285 fpm
Watts
285/210 W
Fan Mounting Location
Pedestal
Air Velocity @ 10 Ft.
800/480 fpm
Assembled
No
Environmental Applications
Industrial
Standards
cULus
Fan Style
Standard
CFM/Watt
21.3
Number of Conductors
3
Thermal Protection
Automatic Reset
Mobile/Stationary
Stationary
Guard Material
Steel
CFM High
6400
Air Velocity @ 40 Ft.
150/100 fpm
Fan Accessory Style
Standard
Fan Housing Material
Steel
Amps
2.8/2.1 A
RPM
850 RPM, 1,100 RPM
Assembly Required
Yes
Color
Black
Wheeled Base
Stationary
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Corrosion-Resistant
Yes
Environment Rating
Dry
Guard Color
Black
Housing Finish
Painted
Airflow
3,510 cfm, 6,400 cfm
For Location
Manufacturing Plant
High-Visibility
No
Base Type
Pedestal
Head Tilt Adjustment
120 Degrees
Removable Base
Permanently Lubricated
Fan Shape
Basket
Bearing Protection
Sealed

Dimensions

Blade Diameter
24 in
Height
74 1/2 in
Shaft Dia.
1/2 in
Max. Depth
27-1/4"
Width
27 1/4 in
Base Dia.
27 3/16 in
Height Adjustment
Adjustable
Fan Cord Length
10 ft
Depth
27 1/4 in
Overall Height - Minimum
59 in

Description

Freestanding Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 24 in, Oscillating, Fan Cord Length 10 ft, 285/210 W Watts, 850 RPM, 1,100 RPM RPM, Number of Blades 3, 2.8/2.1 A Amps, Height 74 1/2 in, Width 27 1/4 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Black, Assembly, cULus, Column, Mounting Hardware, Pedestal

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
