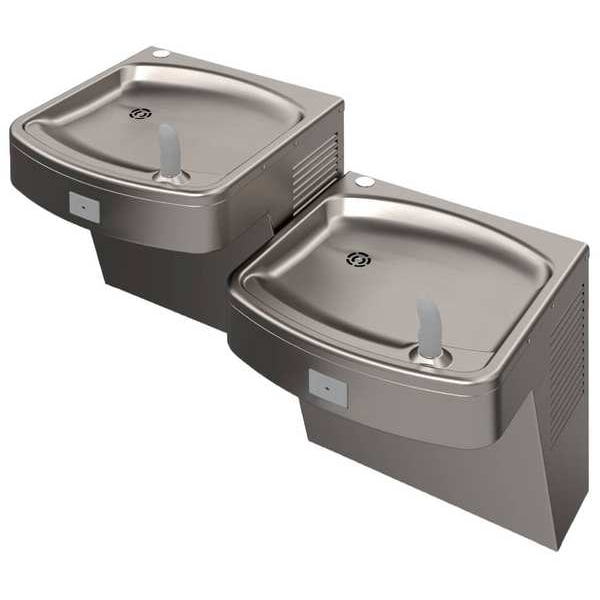

On-Wall Two-Level Drinking Fountain, 2 Level, 18 1/2 in D, 37 1/8 in W

  • Mfr # A172408F-UG
  • Zoro # G300920784
product price:
$
1,088.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
ADA Compliant
Number of Levels
2
Voltage
115V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A172408F-UG
Zoro #
G300920784
UPC #
883232140290
Country of Origin
Mexico

Dimensions

Width
37 1/8 in
Depth
18 1/2 in
Manufacturers Warranty Length
1 1/2 yr on Material and Workmanship, 5 yr on Refrigeration System
Mounting Hole Diameter
1/4 in, 3/8 in
Overall Width
37 1/8 in
Manufacturer Warranty Length
1 yr Parts, 5 yr Refrigeration System
Inlet Tube Outside Diameter
3/8 in
Overall Depth
18 1/2 in
Drain Outside Diameter
1 1/4 in
Basin Width
18 1/2 in
Overall Height
19 3/8 in
Fits Chest Size
Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage(R) - Easy Maintenance Design, Universal Bi-Level can be Installed Left High or Right High

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
ADA Compliant
Number of Levels
2
Voltage
115V
Color
Silver
Refrigerant
134A
Full Load Amps
4.4 A
Operation
Push Bar Fountain
Item
Bi-Level Drinking Fountain
Compliance
Air Conditioning and Refrigeration Institute Standard 1010
Includes
(100) Mesh Inlet Strainer, Individual Hanging Brackets
Ligature Resistant
No
Cold Water Capacity
8 gph
Dispenser Design
Wall
Dispenser Operation
Front Push Button
Water Capacity
8 gph
Regulator
Maintains Constant Stream Height At Line Pressures of 20 to 105 psig
Vandal Resistant
Not Vandal Resistant
Dispensing Temp.
Cold
Refrigerated / Non-Refrigerated
Refrigerated
Drain Connection
1 1/4 in
Standards
ANSI/ASHRAE 18, CE, cUPC, Federal Law 111 380 (Lead-Free), IAPMO Tested to NSF/ANSI 61 Section 9, UL Listed (US and Canada)
Inlet
3/8 in OD
Green Environmental Attribute
Applicable to LEED Criteria
Environment
Indoor
Number of Mounting Holes
9
Operating Voltage
115V AC
Maximum Flow Rate
0.3 gpm
Station Type
Bi-Level Fountain
Maximum Constant Stream Pressure
105 psig
Housing Color
Gray
Bi-Level Field Adjustable
Not Bi-Level Field Adjustable
Refrigerant Type
R134A
Housing Material
Stainless Steel
Includes Pet Bowl
Pet Bowl Not Included
Minimum Supply Line Pressure
20 psig
Cooling Capacity
8 gph @ 50 Degrees F
Temperature Adjustment
Adjustable
Fountain Actuation
Front Push Button
Antimicrobial
Antimicrobial
Basin Material
Stainless Steel
Includes Water Filter
Water Filter Not Included
Full Load Current
4.1 A
Features
Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage(R) - Easy Maintenance Design, Universal Bi-Level can be Installed Left High or Right High
Maximum Cold Water Temperature
50 Degrees F
Refrigeration
Refrigerated
Number of Bubblers
1
Minimum Constant Stream Pressure
20 psig
Housing Finish
Satin
Power Consumption
335 W
Compatible Filter Manufacturer Part Number
7012-313-000
Filter Location
Bottom Panel Access
Product Weight
137 lb
Insert Weight
137 lb

Description

Bi-Level Drinking Fountain, Station Type Bi-Level Fountain, Fountain Actuation Front Push Button, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Gray, Housing Finish Satin, Overall Height 19 3/8 in, Overall Depth 18 1/2 in, Overall Width 37 1/8 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Not Bi-Level Field Adjustable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
