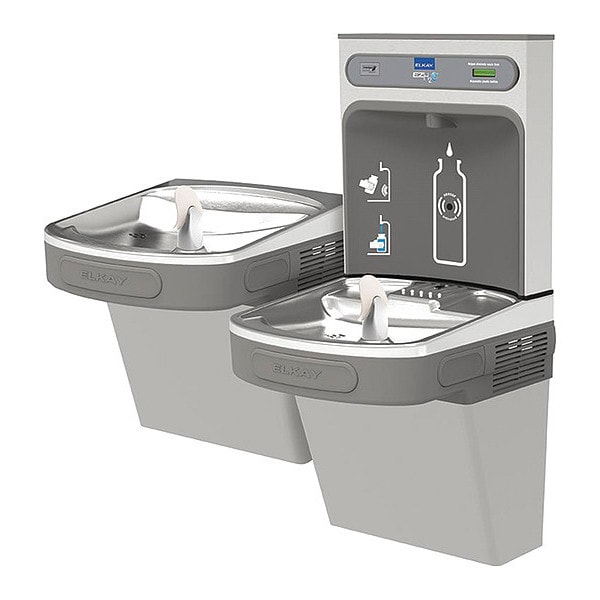

Elkay On-Wall Drinking Fountain with Bottle Filler, 2 Level, 19 in D, 39 5/8 in H, 36 3/4 in W EZSTL8WSLK - main

On-Wall Drinking Fountain with Bottle Filler, 2 Level, 19 in D, 39 5/8 in H, 36 3/4 in W

  • Mfr # EZSTL8WSLK

  • Zoro # G0047586

product price:  $2,152.99
/ea
Additional $205.00 delivery surcharge applies per item.
See details

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EZSTL8WSLK
Zoro #
G0047586
UPC #
094902745985
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Width
36 3/4 in
Depth
19 in
Height
39 5/8 in
Overall Width
36 3/4 in
Overall Height
39 1/8 in
Drain Outside Diameter
1 1/2 in
Overall Depth
19 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Mounting Hole Diameter
7/16 in
Bottle Filler Width
17 7/8 in
Bottle Filler Depth
3 5/8 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
5 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain, Touchless Bottle Filler
Item
Drinking Fountain with Bottle Filler
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 61, UL 399
Compliance
Accessibility,Water Quality Including Lead, Electrical
Dispenser Design
Wall
Dispenser Operation
Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)
Water Temp.
50 Degrees F
Includes
Sensor for the Bottle Filler, Strainer
Refrigerated / Non-Refrigerated
Refrigerated
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Drain Connection
1 1/2 in
Inlet
3/8 in OD
Vandal Resistant
No
Cold Water Capacity
8 gph
Features
Green Ticker, Hands Free, Laminar Flow, Real Drain
Maximum Constant Stream Pressure
105 psi
Refrigerant Type
R134A
Refrigeration
Refrigerated
Includes Pet Bowl
No
Housing Color
Gray
Antimicrobial
Yes
Product Weight
101 lb
Cooling Capacity
8 gph @ 50 Degrees F
Environment
Indoor
Includes Back Panel
No
Compressor Horsepower
1/5 hp
Power Consumption
370 W
Power Source
Electric Corded
Temperature Adjustment
Factory Set but Adjustable
Number of Mounting Holes
6
Maximum Cold Water Temperature
50 Degrees F
Bottle Dispenser Actuation
Sensor
Station Type
Bi-Level Fountain, Bottle Filling Dispenser
Bi-Level Field Adjustable
Yes
Operating Voltage
115V AC
Number of Bubblers
1
Includes Water Filter
No
Full Load Current
6 A
Minimum Supply Line Pressure
20 psi
Housing Finish
Granite
Minimum Constant Stream Pressure
20 psi
Fountain Actuation
Front Pushbar/Side Pushbar

Description

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
