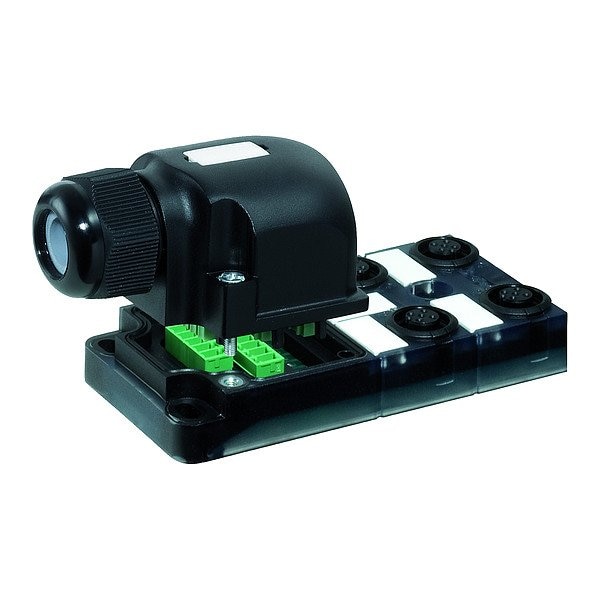

Distribution Box, 17 mm
Mfr # 8000-84450-0000000
Zoro # G015623895
product price:Â
$
115.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
4
Features
Plastic Housing, PNP Electrical Design
Overall Width
50.2 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8000-84450-0000000
- Zoro #
- G015623895
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Width
- 50.2 mm
- Overall Length
- 100 mm
- Overall Height
- 17 mm
- Thread Size
- M12
- Wire Rope Length
- 100 mm
- Length
- 100 mm
Details
- Item
- Distribution Box
- IP Rating
- IP65, IP67
- Maximum Voltage
- 24 V DC
- Number of Poles
- 4
- Features
- Plastic Housing, PNP Electrical Design
- Standards
- CE, China RoHS 25, cULus Listed, UKCA
- Connection Type
- 12-Pole Screw Terminal Module with Cap
- Current Rating per Port
- 4 A
- Number of Ports
- 4
- Resistance Properties
- Chemical Resistant, Flame Resistant, Oil Resistant
- Minimum Operating Temperature
- -20 Degrees C
- Voltage Rating
- 24 V DC
- Current Rating
- 8 A
- Includes
- Connection Cap without Homerun Cable
- Connector Orientation
- Right Angle
- Gender
- Female
Description
Distribution Box, Connection Type 12-Pole Screw Terminal Module with Cap, Connector Orientation Right Angle, Current Rating 8 A, Current Rating per Port 4 A, Features Plastic Housing, PNP Electrical Design, Gender Female, IP Rating IP65, IP67, Includes Connection Cap without Homerun Cable, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -20 Degrees C, Number of Poles 4, Number of Ports 4, Overall Height 17 mm, Overall Length 100 mm, Overall Width 50.2 mm
