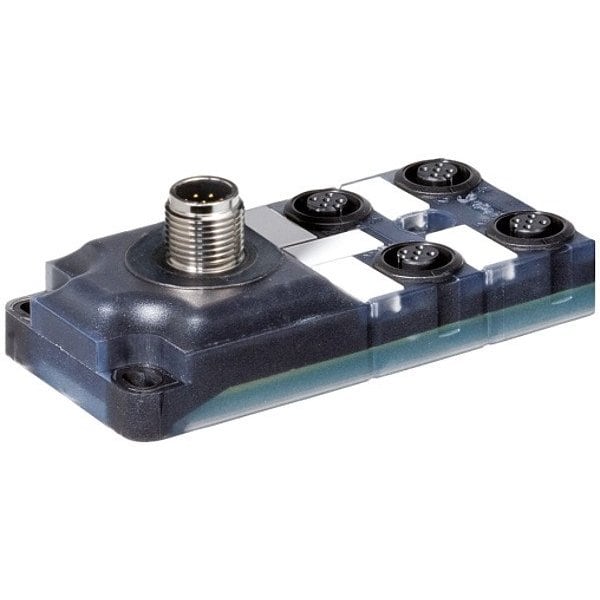

Distribution Box, 17 mm
Mfr # 8000-84470-0000000
Zoro # G615623905
product price: $154.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
4, 5
Features
2 x 4-Pole, 2 x 5-Pole Ports, Ground on Hex Screw, Plastic Housing, PNP Electrical Design
Overall Length
100 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8000-84470-0000000
Zoro #
G615623905
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
100 mm
Overall Width
50 mm
Overall Height
17 mm
Thread Size
M12
Details
Item
Distribution Box
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
4, 5
Features
2 x 4-Pole, 2 x 5-Pole Ports, Ground on Hex Screw, Plastic Housing, PNP Electrical Design
Current Rating
2 A
Connection Type
8-Pole M12 Male Port
Minimum Operating Temperature
-20 Degrees C
Number of Ports
4
Current Rating per Port
2 A
Standards
CE, China RoHS 25, cULus Listed, UKCA
Gender
Female
Resistance Properties
Chemical Resistant, Flame Resistant, Oil Resistant
Voltage Rating
24 V DC
Connector Orientation
Front-Facing
Description
Distribution Box, Connection Type 8-Pole M12 Male Port, Connector Orientation Front-Facing, Current Rating 2 A, Current Rating per Port 2 A, Features 2 x 4-Pole, 2 x 5-Pole Ports, Ground on Hex Screw, Plastic Housing, PNP Electrical Design, Gender Female, IP Rating IP65, IP67, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -20 Degrees C, Number of Poles 4, 5, Number of Ports 4, Overall Height 17 mm, Overall Length 100 mm, Overall Width 50 mm
