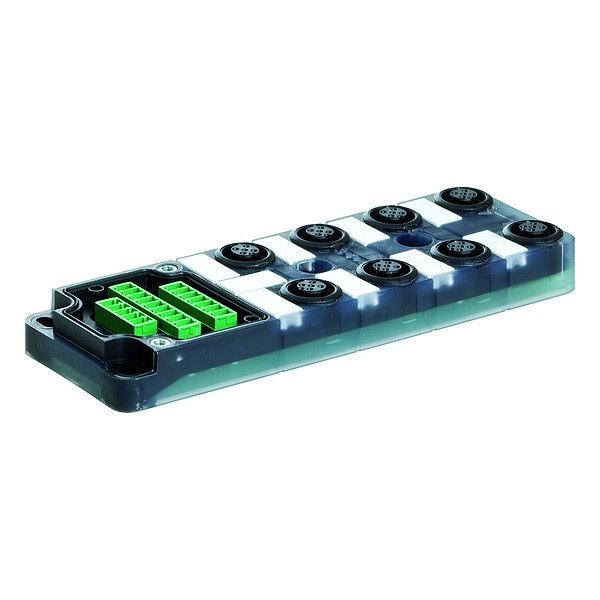

Distribution Box, 17 mm
Mfr # 8000-88500-0000000
Zoro # G215623886
product price: $130.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
5
Features
Plastic Housing, PNP Electrical Design
Overall Width
50.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8000-88500-0000000
Zoro #
G215623886
UPC #
-
Country of Origin
Germany
Dimensions
Overall Width
50.2 mm
Overall Length
150 mm
Overall Height
17 mm
Thread Size
M12
Details
Item
Distribution Box
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
5
Features
Plastic Housing, PNP Electrical Design
Current Rating
8 A
Number of Ports
8
Current Rating per Port
4 A
Voltage Rating
24 V DC
Gender
Female
Minimum Operating Temperature
-20 Degrees C
Standards
CE, China RoHS 25, cULus Listed, UKCA
Connection Type
21-Pole Screw Terminal Module
Resistance Properties
Chemical Resistant, Flame Resistant, Oil Resistant
For Use With
21-Pole Screw Terminal Cap
Connector Orientation
Front-Facing
Description
Distribution Box, Connection Type 21-Pole Screw Terminal Module, Connector Orientation Front-Facing, Current Rating 8 A, Current Rating per Port 4 A, Features Plastic Housing, PNP Electrical Design, For Use With 21-Pole Screw Terminal Cap, Gender Female, IP Rating IP65, IP67, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -20 Degrees C, Number of Poles 5, Number of Ports 8, Overall Height 17 mm, Overall Length 150 mm, Overall Width 50.2 mm
