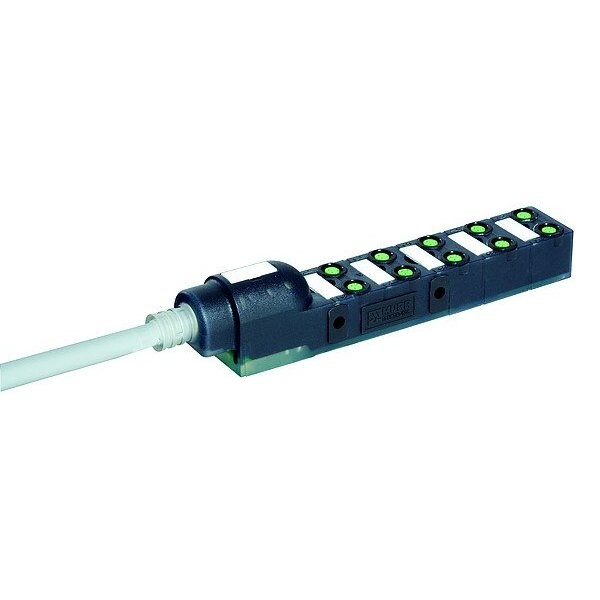

Distribution Box, 20.5 mm
Mfr # 8000-80010-3840500
Zoro # G515623913
product price: $208.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
3
Features
Plastic Housings, PNP Electrical Design
Number of Ports
10
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8000-80010-3840500
Zoro #
G515623913
UPC #
-
Country of Origin
Germany
Dimensions
Overall Width
30 mm
Overall Height
20.5 mm
Cable Length
5 m
Overall Length
155 mm
Thread Size
M8
Wire Size
10x0.34+2x0.75mm²
Details
Item
Distribution Box
IP Rating
IP65, IP67
Maximum Voltage
24 V DC
Number of Poles
3
Features
Plastic Housings, PNP Electrical Design
Number of Ports
10
Resistance Properties
Chemical Resistant, Flame Resistant, Gasoline Resistant, Oil Resistant
Voltage Rating
24 V DC
Connection Type
Free Cable End
Cable Jacket Color
Gray
Cable Jacket Material
PUR
Current Rating
8 A
Standards
CE, China RoHS 25, cULus Listed, DIN EN 60811-404, IEC 60332-2-2, UKCA, UL 1581 Section 1090, UL 1581 Section 1100 FT2
Current Rating per Port
2 A
Minimum Operating Temperature
-20 Degrees C
Gender
Female
Connector Orientation
Right Angle
Description
Distribution Box, Cable Jacket Color Gray, Cable Jacket Material PUR, Cable Length 5 m, Connection Type Free Cable End, Connector Orientation Right Angle, Current Rating 8 A, Current Rating per Port 2 A, Features Plastic Housings, PNP Electrical Design, Gender Female, IP Rating IP65, IP67, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -20 Degrees C, Number of Poles 3, Number of Ports 10, Overall Height 20.5 mm, Overall Length 155 mm, Overall Width 30 mm
