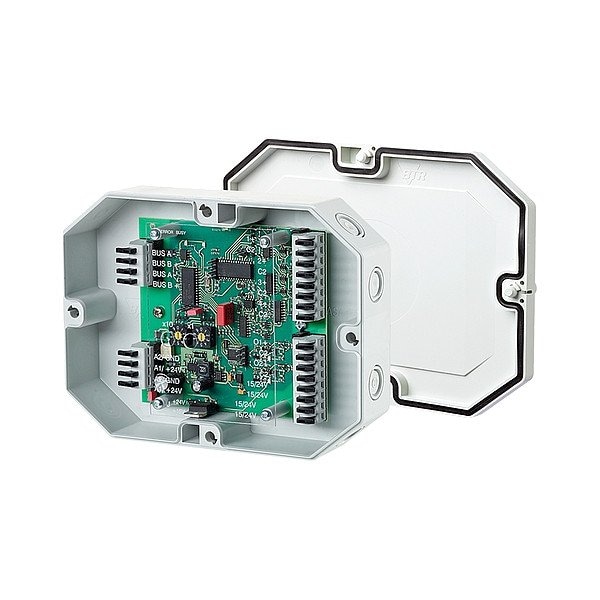

Modbus Module, 4 Inputs, 2 Outputs
Mfr # 11084213IP
Zoro # G712007233
product price:Â $438.99
/ea
Free Shipping & Returns
Key Features
Output Type
(2) Analog
Number of Outputs
2
Number of Inputs
4
Features
Inputs Can Detect Resistances and Voltages, Integrated PID Controllers, Module is Address with Adjustable Bit Rate, Encoder Outputs for Control Variables, Universally Configured Inputs
Output Circuit Current - Maximum
5 mA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 11084213IP
- Zoro #
- G712007233
- UPC #
- 4250184172871
- Country of Origin
- Germany
Dimensions
- Overall Height
- 40.7 mm
- Overall Depth
- 120 mm
- Overall Width
- 160 mm
Details
- Item
- Modbus Module
- Output Type
- (2) Analog
- Number of Outputs
- 2
- Number of Inputs
- 4
- Features
- Inputs Can Detect Resistances and Voltages, Integrated PID Controllers, Module is Address with Adjustable Bit Rate, Encoder Outputs for Control Variables, Universally Configured Inputs
- Output Circuit Current - Maximum
- 5 mA
- Connector Gender
- Female
- Product Type
- Modbus Module
- Output Circuit Voltage - Minimum
- 0 V DC
- Power Required
- 24V AC/DC
- Output Circuit Voltage - Maximum
- 10 V DC
- Connector Type
- Terminal Block
- Current Rating
- 90 mA
- Input Circuit Voltage - Minimum
- 0 V DC
- Communication Protocol
- Modbus RTU
- Compatible with Series
- C-Logline
- Compatible Product Type
- BAS Controller, Programmable Logic Controllers, TCP Gateways
- Mounting Style
- Surface
- Input Circuit Voltage - Maximum
- 10 V DC
- Wire Connection Type
- Spring Clamp Terminal
Description
Modbus Module, Number of Inputs 4, Number of Outputs 2, Power Required 24V AC/DC, Features Inputs Can Detect Resistances and Voltages, Integrated PID Controllers, Module is Address with Adjustable Bit Rate, Encoder Outputs for Control Variables, Universally Configured Inputs, Connector Gender Female, Current Rating 90 mA, Mounting Style Surface, Connector Type Terminal Block, Wire Connection Type Spring Clamp Terminal
