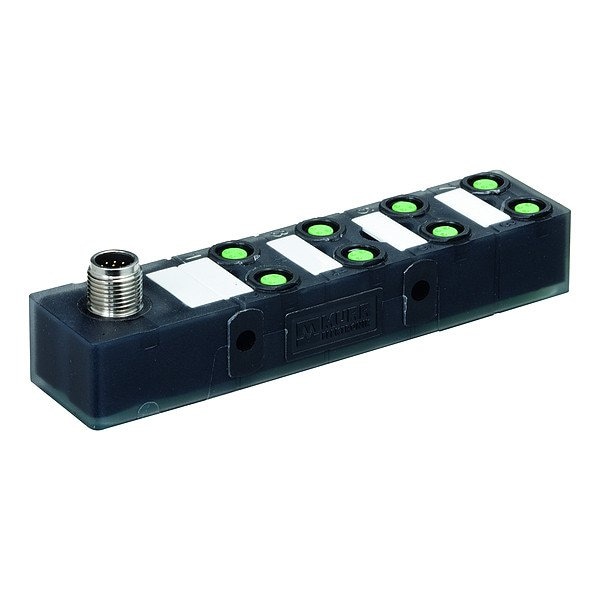

Distribution Box, 20.5 mm
Mfr # 8000-88060-0000000
Zoro # G115623917
product price: $156.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP67
Maximum Voltage
24 V DC
Number of Poles
3
Features
Plastic Housing, PNP Electrical Design
Overall Height
20.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8000-88060-0000000
Zoro #
G115623917
UPC #
-
Country of Origin
Germany
Dimensions
Overall Height
20.5 mm
Overall Width
30 mm
Thread Size
M8
Overall Length
127 mm
Details
Item
Distribution Box
IP Rating
IP67
Maximum Voltage
24 V DC
Number of Poles
3
Features
Plastic Housing, PNP Electrical Design
Number of Ports
8
Voltage Rating
24 V DC
Resistance Properties
Chemical Resistant, Flame Resistant, Oil Resistant
Connection Type
12-Pole M12 Male Port
Current Rating per Port
1.5 A
Minimum Operating Temperature
-20 Degrees C
Standards
CE, China RoHS 25, cULus Listed, UKCA
Gender
Female
Connector Orientation
Front-Facing
Description
Distribution Box, Connection Type 12-Pole M12 Male Port, Connector Orientation Front-Facing, Current Rating per Port 1.5 A, Features Plastic Housing, PNP Electrical Design, Gender Female, IP Rating IP67, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -20 Degrees C, Number of Poles 3, Number of Ports 8, Overall Height 20.5 mm, Overall Length 127 mm, Overall Width 30 mm, Resistance Properties Chemical Resistant, Flame Resistant, Oil Resistant
