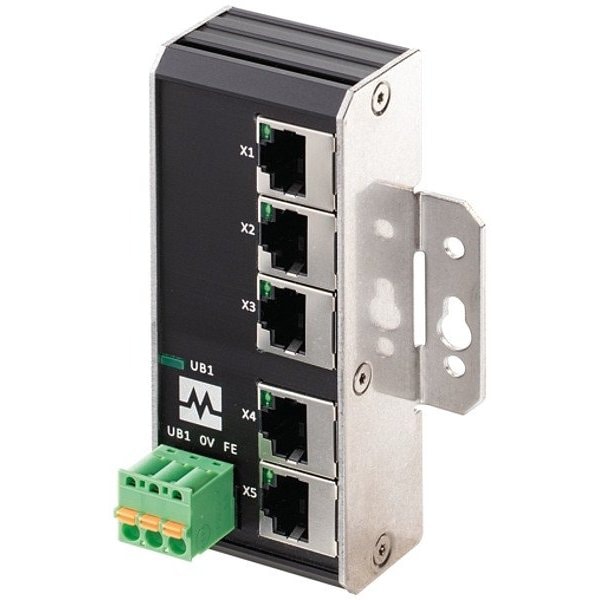

Ethernet Switch, IP20,100 mbps

Mfr # 58901
Zoro # G822823204

292.99

Free Shipping & Returns

Key Features

Housing Material

Metal

Overall Width

69 mm

Port Type

RJ45

Protocols Supported

EtherNet/IP, PROFINET

Minimum Operating Temperature

-40 Degrees C

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 58901
Zoro #: G822823204
UPC #: -
Country of Origin: Germany

Dimensions

Overall Width: 69 mm
Overall Height: 105 mm
Overall Depth: 28 mm

Details

Housing Material: Metal
Port Type: RJ45
Protocols Supported: EtherNet/IP, PROFINET
Minimum Operating Temperature: -40 Degrees C
Series: Xenterra
Data Rate: 100 MBps
Maximum Operating Temperature: 70 Degrees C
Number of X-Coded Fieldbus Ports: 0
Features: Auto-Crossover, Auto-Negotiation
Power Consumption: 0.9 W
Number of D-Coded Fieldbus Ports: 0
Maximum Input Voltage: 8/28V AC, 9/36V DC
Product Type: Ethernet Switch
Network Interface: 100 mbps, Ethernet
Number of PoE Ports: 0
Switch Management: Unmanaged
Fieldbus Type: Ethernet
Power Connector Number of Poles: 3
Number of Ports: 5
Port Gender: Female
Standards: CE, cULus Listed, UKCA
IP Rating: IP20
Item: Ethernet switch

Description

Ethernet switch, Features Auto-Crossover, Auto-Negotiation, Port Type RJ45, IP Rating IP20, Mounting Location Wall, Network Interface 100 mbps, Ethernet, Number of Ports 5, Switch Management Unmanaged, Maximum Input Voltage 8/28V AC, 9/36V DC, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Depth 28 mm, Overall Height 105 mm, Overall Width 69 mm, Standards CE, cULus Listed, UKCA
