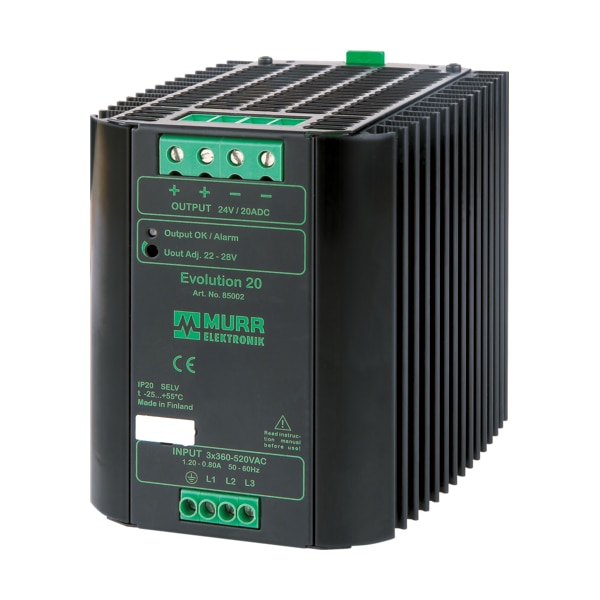

Power Supply, 324/572V AC; 480/745V DC, 24V DC, 20A, DIN Rail
Mfr # 85002
Zoro # G500448286
product price:Â $693.99
/ea
Free Shipping & Returns
Key Features
Input Voltage
324/572V AC; 480/745V DC
Output Voltage - Nominal
24V DC
Current - Output
20 A
Mounting
DIN Rail
Phase
Three
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 85002
- Zoro #
- G500448286
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Overall Height
- 113 mm
- Overall Width
- 132 mm
- Overall Depth
- 136 mm
- Depth
- 136 mm
- Width
- 113 mm
- Height
- 132 mm
Details
- Item
- Power Supply
- Input Voltage
- 324/572V AC; 480/745V DC
- Output Voltage - Nominal
- 24V DC
- Current - Output
- 20 A
- Mounting
- DIN Rail
- Phase
- Three
- Operating Temp. Range
- -25 to 70°C
- Hz
- 50/60 Hz
- Standards
- IEC 61010-2-201, EN 61204-3, EN 55011 A, EN 61000-3-2, SEMI F47
- Phase - Electrical
- Three
- Output Amps
- 20A
- Protection
- IP20
- Ripple Volts Regulation
- max. 50 mV eff/rms
- Output Voltage
- 24V DC
- Connection
- Screw
Description
EVOLUTION POWER SUPPLY 3-PHASE, IN: 360-520VAC OUT: 22-28V/20ADC, Allows continuous two-phase- operation, Extra-power - for 4 seconds 50% additional power
