  13. Door Frame Weatherstrip, 8 ft, Black

This item is Discontinued.

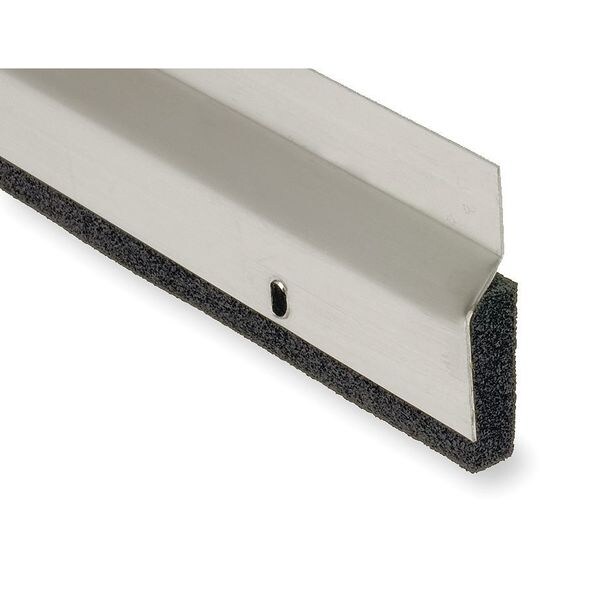

National Guard Door Frame Weatherstrip, 8 ft, Black 122NSS-8

Door Frame Weatherstrip, 8 ft, Black (Discontinued)

  • Mfr # 122NSS-8
  • Zoro # G0308481
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122NSS-8
Zoro #
G0308481
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
8 ft
Insert Size
1/2 in
Flange Height
1 3/4 in
Overall Width
2 3/16 in
Flange Thickness
0.031 in
Flange Width
1 3/4 in
Insert Size - Maximum
1/2 in

Details

For Use With
96 in H Doors
Projection
3/8 in
Item
Door Weatherstripping
Product Type
Weatherstripping
Insert Color
Black
Insert Material
Neoprene
Flange Material
Stainless Steel
Mounting Type
Surface
Standards
ANSI/BHMA A156.22, ASTM E2235, ASTM E283, ASTM E90, UL to ANSI, UL to ANSI and ANSI/UL1784, UL to CAN/ULC-S104 and ANSI Complies with NFPA 80 and NFPA 252
Fire Rated
3 hr
Includes
#6 x 1 in Stainless Steel SMS, #6 x 3/4 in Stainless Steel SMS
Flange Finish
Brushed Stainless
Sold As
Strip
Hardware
Included
Insert Type
Brush
Stays Flexible to
-20 Degrees to 200 Degrees F
Max. Door Gap
11/32 in
Green Environmental Attribute
Applicable to LEED Criteria
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
UL Fire Rating
UL10B, UL10C
Includes Hardware
Hardware Included
Temperature - Maximum
200 Degrees F
Gap - Maximum
11/32 in
Flange Projection
3/8 in
Temperature - Minimum
-20 Degrees F

Description

Door Weatherstripping, Insert Type Brush, Insert Material Neoprene, Insert Color Black, Insert Size 1/2 in, Flange Material Stainless Steel, Flange Finish Brushed Stainless, Flange Height 1 3/4 in, Flange Width 1 3/4 in, Flange Thickness 0.031 in, Overall Length 8 ft, Overall Width 2 3/16 in, Stays Flexible to -20 Degrees to 200 Degrees F, Projection 3/8 in, Mounting Type Screw In, Max. Door Gap 11/32 in, Fire Rated 3 hr, For Use With 96 in H Doors
