  11. Gate Valve, 2 In., Carbon Steel
This item is Discontinued.

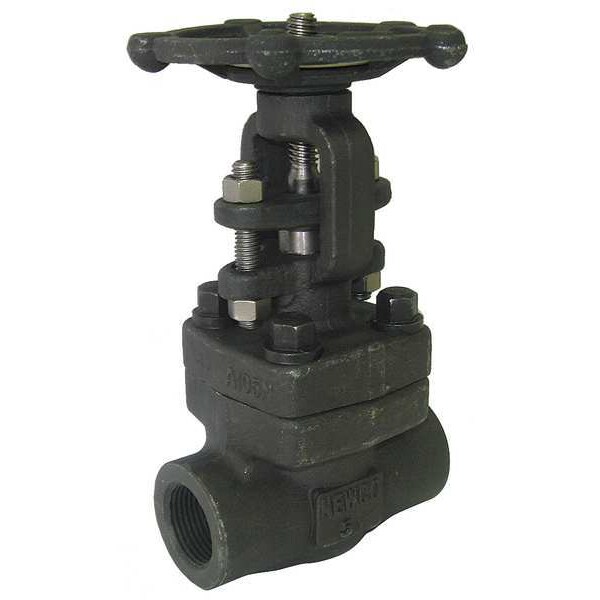

Newco Gate Valve, 2 In., Carbon Steel 02-18T-FS2-BB-RP-NC

Gate Valve, 2 In., Carbon Steel (Discontinued)

  • Mfr # 02-18T-FS2-BB-RP-NC
  • Zoro # G4988067
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
02-18T-FS2-BB-RP-NC
Zoro #
G4988067
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2"
Pipe Size - Valves
2"
Inlet to Outlet Length
6 45/64 in
Overall Length
6.7 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Handle Height
11.41 in

Details

Connection Type
FNPT
Body Material
Carbon Steel
Item
Gate Valve
Stem Material
410 Stainless Steel
Standards
API 598 Shell and Leak Test, ASME B16.34
Body Material - Valves
Carbon Steel
Valve Stem Type
Rising
Wedge Material
Stainless Steel
Valve Class
Class 600
Top of Handle to Inlet Center
11 13/32 in
Valve Max. Fluid Temp.
800 Degrees F
Handle Type
Hand Wheel
Handle Material
Carbon Steel
Stem Type
Rising
Bonnet Style
Bolted
Seal Material
Graphite
Seat Material
Metal
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Operating Temperature - Maximum
800 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Connection Gender - Side 1
Female
Maximum Pressure - Operating
1,990 psi
Bonnet Material
Carbon Steel
Wedge Style
Solid
Maximum Pressure - Steam
1,115 psi
Coefficient of Volume (Cv)
99

Description

Gate Valve, Body Material Carbon Steel, Nominal Valve Size 2 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 1,990 psi, Maximum Pressure - Steam 1,115 psi, Coefficient of Volume (Cv) 99, Stem Type Rising, Stem Material 410 Stainless Steel, Wedge Style Solid, Wedge Material Stainless Steel, Seat Material Metal, Seal Material Graphite, Handle Type Wheel, Bonnet Material Carbon Steel, Bonnet Style Bolted, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT
