  11. Gate Valve, 4 In., Carbon Steel, Valve Class: Class 150
This item is Discontinued.

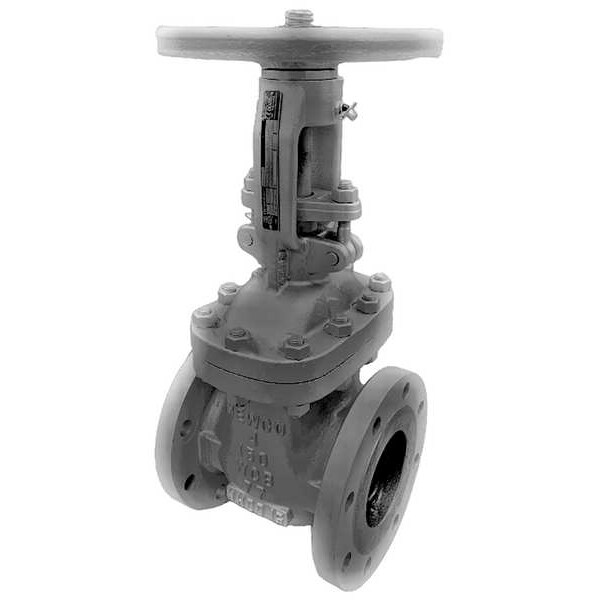

Newco Gate Valve, 4 In., Carbon Steel, Valve Class: Class 150 04-11F-CB2

Gate Valve, 4 In., Carbon Steel, Valve Class: Class 150 (Discontinued)

  • Mfr # 04-11F-CB2
  • Zoro # G4988006
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
04-11F-CB2
Zoro #
G4988006
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
4"
Inlet to Outlet Length
9 in
Pipe Size - Valves
4"
Overall Length
9 in
Handle Height
22.59 in
Connection Size - Side 2
4 in
Nominal Valve Size
4 in
Connection Size - Side 1
4 in

Details

Connection Type
150# Flanged
Body Material
Carbon Steel
Item
Outside Stem and Yoke Gate Valve
Handle Type
Hand Wheel
Handle Material
Ductile Cast Iron
Stem Material
410 Stainless Steel
Valve Stem Type
Rising
Wedge Material
410 Stainless Steel
Standards
API 598 Shell and Leak Test, ASME B16.34
Top of Handle to Inlet Center
22 19/32 in
Valve Class
Class 150
Body Material - Valves
Carbon Steel
Valve Max. Fluid Temp.
800 Degrees F
Stem Type
Rising
Seal Material
Graphite
Bonnet Style
Bolted
Seat Material
Metal
Connection Type - Side 1
Flange
Wedge Style
Flexible
Maximum Pressure - Steam
95 psi
Connection Type - Side 2
Flange
Number of Flange Bolt Holes
8
Bonnet Material
Carbon Steel
Coefficient of Volume (Cv)
1,297
For Media
Gas, Oil, Steam, Water
Operating Temperature - Maximum
800 Degrees F
ANSI Flange Class
Class 150
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
300 psi

Description

Gate Valve, For Media Gas, Oil, Steam, Water, Body Material Carbon Steel, Nominal Valve Size 4 in, ANSI Flange Class Class 150, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 95 psi, Coefficient of Volume (Cv) 1,297, Stem Type Rising, Stem Material 410 Stainless Steel, Wedge Style Flexible, Wedge Material 410 Stainless Steel, Seat Material Metal, Seal Material Graphite, Handle Type Wheel, Bonnet Material Carbon Steel, Bonnet Style Bolted, Connection Gender - Side 1 Not Applicable
