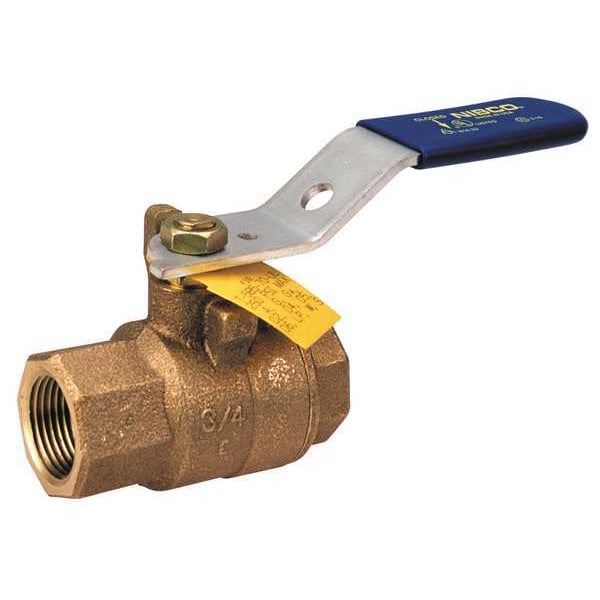

3/4" FNPT Bronze Ball Valve Inline

  • Mfr # T58570UL 3/4

  • Zoro # G5273642

product price:
$
58.79
/ea

Key Features

Ball Material
Chrome-Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T58570UL 3/4
Zoro #
G5273642
UPC #
039923678522
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
2.94 in
Nominal Valve Size
3/4 in
Handle Height
2.25 in
Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Wire Rope Length
2.94 in
Length
2.94 in

Details

Ball Material
Chrome-Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Flammable Fluids, Gas
Connection Type
FNPT x FNPT
Item
Ball Valve
Handle Material
Zinc-Plated Steel
Stem Material
Silicon Bronze
Max. Pressure
250 PSI CWP
Body Material
Bronze
Temp. Range
-20 Degrees to 400 Degrees F
Stem Type
Blowout Resistant
Features
The NIBCO(R) bronze ball valve is UL Listed for natural and LP gas and flammable fluid applications.
Seat Material
RPTFE
Ball Valve Product Group
Manual
Compliance
ANSI/ASME B16.33, CGA 3.16, CSA, CUL YSDT7, UL842
Handle Type
Lever
Standards
ANSI/ASME B16.33, CGA 3.16, UL842 CUL YSDT7 CSA
Seal Material
PTFE
Type
Two Piece
Maximum Pressure - Steam
250 psi
Connection Gender - Side 2
Female
Color - Valve Handle
Blue
Connection Type - Side 2
NPT
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 1
NPT
3-A Standard Compliance
Not Rated
Connection Gender - Side 1
Female
Operating Temperature - Maximum
400 Degrees F
Valve Body Style
Straight
Maximum Pressure - Operating
250 psi
Manufacturer Warranty
5 yr
Valve Construction
Two-Piece

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Flammable Fluids, Gas, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam 250 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle Type Lever
