Shop NIBCO

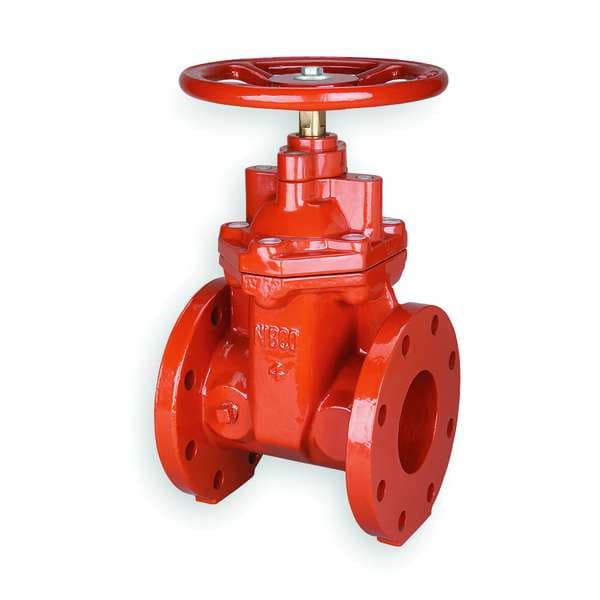

Gate Valve, Class 125, 4 In., Flange

  • Mfr # F-619-RWS
  • Zoro # G1407673
product price:
$
836.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
4"
Connection Type
Flanged
Body Material
Ductile Iron
Wedge Material
Ductile Iron
Valve Stem Type
Non-Rising
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
F-619-RWS
Zoro #
G1407673
UPC #
039923830883
Country of Origin
United States
Connection Type
Flanged
Body Material
Ductile Iron
Item
Gate Valve
Wedge Material
Ductile Iron
Valve Stem Type
Non-Rising
Max. Cold Working Pressure - CWP
300 psi
Handle Material
Ductile Iron
Handle Type
Wheel
Valve Max. Fluid Temp.
160 Degrees F
Top of Handle to Inlet Center
13 1/2 in
Valve Class
Class 125
Body Material - Valves
Ductile Iron
Stem Material
Cast Iron
Standards
AWWA C509, C515, NSF 372
Max. Water Pressure - CWP
300 psi
Seal Material
EPDM
Stem Type
Non-Rising
Bonnet Style
Bolted
Seat Material
EPDM, Iron
Connection Type - Side 2
Flange
ANSI Flange Class
Class 125
Wedge Style
Resilient
Maximum Pressure - Operating
300 psi
NSF Certifications for Food and Drinking Water
NSF 61
Operating Temperature - Minimum
33 Degrees F
Maximum Pressure - Steam
250 psi
Connection Type - Side 1
Flange
Operating Temperature - Maximum
160 Degrees F
Bonnet Material
Ductile Iron
Number of Flange Bolt Holes
8
For Media
Water

Description

Gate Valve, For Media Water, Body Material Ductile Iron, Nominal Valve Size 4 in, ANSI Flange Class Class 125, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 250 psi, Stem Type Non-Rising, Stem Material Cast Iron, Wedge Style Resilient, Wedge Material Ductile Iron, Seat Material EPDM, Iron, Seal Material EPDM, Handle Type Wheel, Bonnet Material Ductile Iron, Bonnet Style Bolted, Connection Gender - Side 1 Not Applicable, Connection Type - Side 1 Flange
