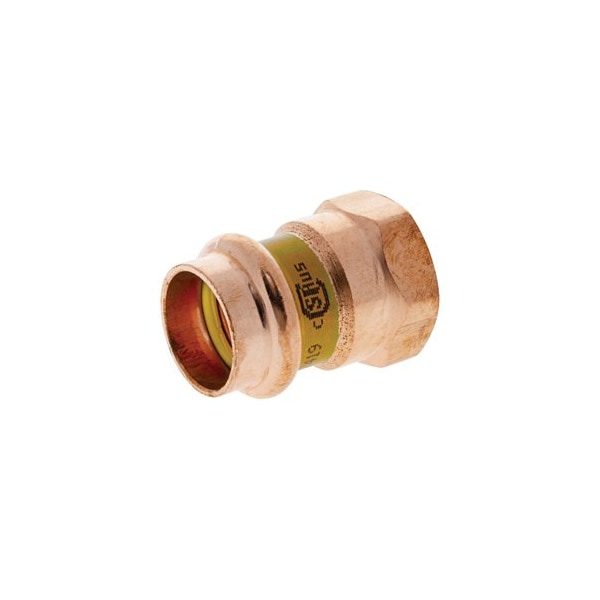

Strt, Copper, Press-fit11/2", FNPT11/2"
- Mfr # 9025900HPC
- Zoro # G804180615
product price:Â
$
58.19
/ea
Key Features
Specific Fitting Shape
Straight Adapter
Standards
ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
Maximum Operating Pressure
200 psi
Compatible Tube Material
Copper
Minimum Operating Temperature
-40 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9025900HPC
- Zoro #
- G804180615
- UPC #
- 039923412591
- Country of Origin
- United States
- Item
- Crimp Adapter Fitting
- Specific Fitting Shape
- Straight Adapter
- Standards
- ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
- Maximum Operating Pressure
- 200 psi
- Compatible Tube Material
- Copper
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 180 Degrees F
- Application
- Natural Gas, Non-Potable Water, Propane
- Fitting Side B Connection Type
- FNPT
- Fitting Shape
- Straight
- O-Ring Material
- HNBR
- Compatible Copper Tube Type
- Type G, Type K, Type L
- Fitting Side A Connection Type
- Press-Fit
- Fitting Material
- Copper
- Connector Type
- Adapter
- Fitting Side 1 Connection Type
- Press-fit
- Fitting Side 2 Connection Type
- FNPT
- Operating Temperature - Minimum
- -40 Degrees F
- Center Stop Type
- No Center Stop
- Operating Pressure - Maximum
- 125 psi
- For Media Type
- Gases, Non-Potable Water
- Material Grade
- C12200
- Operating Temperature - Maximum
- 180 Degrees F
Description
Crimp Adapter Fitting, Application Natural Gas, Non-Potable Water, Propane, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Copper, Fitting Side B Pipe Size 1 1/2 in, Material Grade C12200, O-Ring Material HNBR, Specific Fitting Shape Straight Adapter, Fitting Side A Tube Outer Diameter 1 1/2 in, Fitting Side B Tube Outer Diameter 1 1/2 in, Overall Length 2 7/16 in
