  11. Pipe Plug, 16" Nominal Sz, 15.25" min dia
Shop All Pipe Test Plugs
Nite Caps

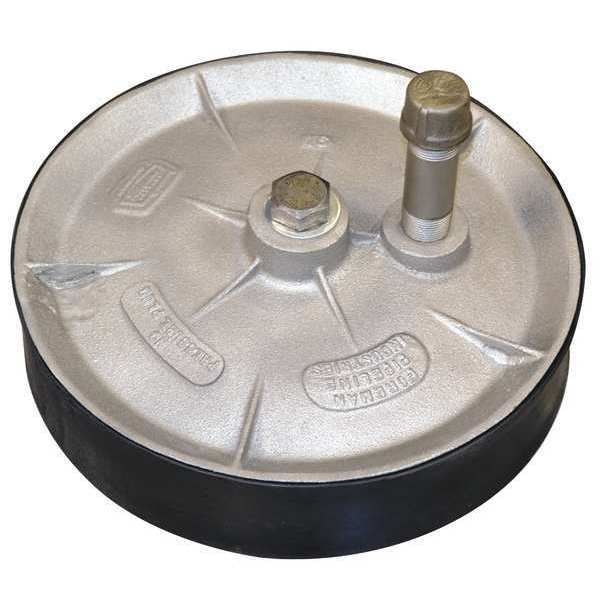

Pipe Plug, 16" Nominal Sz, 15.25" min dia

product price: $334.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Aluminum, Neoprene Rubber
  • Max. Diameter 15.75 in
  • Nominal Size 16 in
  • For Use In Sealing At The End Of the Pipe
  • Min. Dia. 15.25 in
See all product information

Product Information

Dimensions

Max. Diameter 15.75 in
Nominal Size 16 in
Min. Dia. 15.25 in
Deflated Size 6.5 in L x 15.25 in D
For Pipe Size 16 in
For Maximum Pipe Inside Diameter 15.75 in
Overall Height 14.75 in
For Minimum Pipe Inside Diameter 15.25 in

Details

Material Aluminum, Neoprene Rubber
For Use In Sealing At The End Of the Pipe
Type Mechanical
Item Pipe Plug
Plug Seal Location End of Pipe
Maximum Back Pressure (Air) 0 psi
Test Plug Weight 20 lb
Plug Seal Material Neoprene
For Use On Sealing at the End of the Pipe
Head Type Hex Nut
Minimum Operating Temperature -40 Degrees F
Maximum Operating Temperature 260 Degrees F
Plate Material Aluminum
Application Pipe

Description

Pipe Plug, Bypass Connection Size Not Applicable, Bypass Connection Type Not Applicable, Bypass Thread Gender Not Applicable, For Maximum Pipe Inside Diameter 15.75 in, For Minimum Pipe Inside Diameter 15.25 in, For Pipe Size 16 in, Handle Material Not Applicable, Included Water Fill Port/Hose Not Applicable, Maximum Back Pressure (Air) 0 psi, Overall Height 14.75 in, Padlock Shackle Diameter Not Applicable, Plate Material Aluminum, Plug Seal Location End of Pipe, Plug Seal Material Neoprene

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
