Nora Lighting NLIC-401AT-1EL 4 in.;50W;LOW VOL;IC;AT;120V;EL

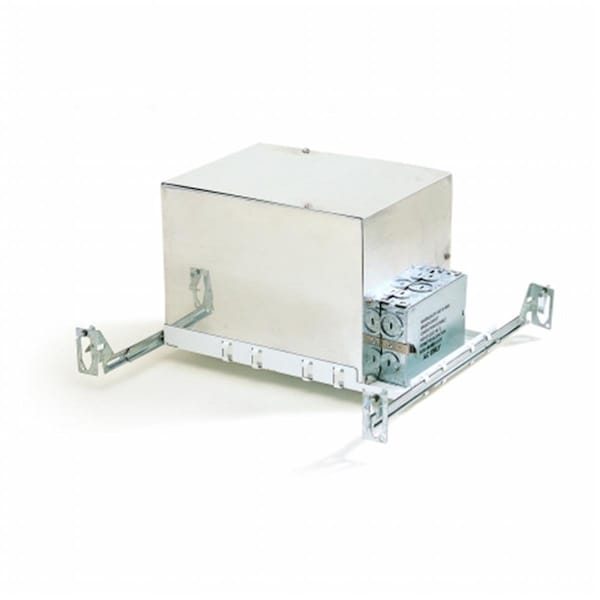

Nora Lighting's 4” low voltage IC small low profile double wall housing provides crisp, defined MR16 quartz halogen illumination to any insulated ceiling application. Air-Tight construction offers energy savings by reducing the flow of air through the ceiling. The small profile of this series provides easy installation to any joist or steel stud construction. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources.

Air Tight: Housing includes pre-installed gaskets to restrict airflow from room into ceiling plenum.

Minimum Clearances: “IC” Housing is direct contact rated; no minimum clearance is required.

Ceiling Thickness: Ceiling thickness varies from 5/8" - 1-3/8".

Lamp Adjustment: Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment.

UV/Shatter Guard Shield: All low voltage trims include a tempered UV/shatter shield.

Bar Hangers: Bar hangers are adjustable from 13-5/8" to 24-1/2" and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Junction Box: Junction box is listed for through branch circuit wiring and contains seven 1/2" knockouts and four Romex pryouts with strain relief.

Dimming: Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer.

Electrical: Quick Connector provided.

Wattage: 50W (actual wattage varies with trim).

Lamp: 12V MR16.

Dimensions: 12-11/16"L x 8-1/8"W x 7-1/4"D.

Ceiling Opening: 4-3/8".
Transformer:

Input: 120V.

Type: Electronic.

Output: 12V 50W.
Listing:

cULus Damp Location with Feed Through.

cULus Wet Location (Only with designated trims).

Washington State Approved.

Meets or exceeds ASTM-283 Air-Tight.
